A home well pump is the single component that decides whether your private water supply feels solid or unreliable. It is also the part most likely to fail on you, and the part most often replaced with the wrong size. Search for the best well pumps for home water systems and you will find pages that argue about stainless steel versus cast iron and never once mention gallons per minute. That is the gap this guide closes.
Here is how a private water system actually works. The pump sits either in the well casing (a submersible) or beside it in a pump house (a self-priming jet pump). Water travels up a drop pipe to a pitless adapter near the top of the casing, then into a pressure tank. A pressure switch, a cycle stop valve, or a variable frequency drive reads tank pressure and starts and stops the pump as household demand rises and falls. Every one of those components has to agree with the others, which is why pump choice is a system decision rather than a catalog decision.
Our direct answer: a typical single-family home on a drilled well 100 to 300 feet deep with a 10 to 20 GPM sustained yield is best served by a 3/4 HP to 1 HP stainless steel submersible pump between 150 and 270 feet of rated head, paired with a properly sized pressure tank. Shallow wells under 25 feet are a jet pump problem, and nothing else. The single most common mistake we see is a pump chosen for pump setting depth rather than for sustained yield, which produces short cycling and upthrust damage before the motor ever fails.
We spent 2026 season building this list against manufacturer specifications, owner review patterns, and the sizing questions that dominate the well owner forums. Twelve pumps, grouped by the job they actually do, with honest failure modes attached to each one. Updated for 2026.
Table of Contents
- Top 3 Best Well Pump Picks for Home Water Systems (October 2026)
- All 12 Well Pumps Compared Side by Side in 2026
- How We Chose These 12 Well Pumps
- 1. Hallmark MA0414X-7A 1 HP 230V Submersible – Best Overall
- 2. Acquaer CJE100-1 Convertible Jet Pump – Shallow or Deep on One Unit
- 3. Hallmark MA0343X-4 1/2 HP 115V Submersible – Best Rated in the Group
- 4. Red Lion RJS-100 1 HP Premium Jet Pump – Switch and Gauge Included
- 5. VEVOR 1 HP 115V Submersible – Best Value for 115V Circuits
- 6. Wayne SWS50 1/2 HP Cast Iron Jet Pump – Best for Cabins
- 7. Goulds J5S 1/2 HP Jet Pump – Most Versatile for Long Service
- 8. Aquastrong PGA150SA 1.6 HP Kit – Best Complete Kit
- 9. Red Lion PWJET50 1/2 HP Jet Pump – Best Potable Certified Option
- 10. Hallmark MA0459X-14A 3 Inch Slimline Submersible – Best for Narrow Casings
- 11. Goulds J10S 1 HP Jet Pump – Best for High Demand Homes
- 12. Red Lion RL-SWJ75 3/4 HP Jet Pump – Best for Farm and Irrigation
- Which Type of Well Pump Do You Need?
- How to Size a Well Pump From Your Own Well Log
- Pressure Tank, Pressure Switch and Constant Pressure Control
- Cast Iron vs Stainless Steel vs Thermoplastic
- Expected Lifespan, Maintenance and Warning Signs
- Frequently Asked Questions
- Conclusion
Top 3 Best Well Pump Picks for Home Water Systems (October 2026)
These three cover the widest range of real installations, from a 115V cabin on a shallow well to a 230V deep-well home. The Hallmark MA0414X-7A takes the top slot on the strength of flow, head, and the largest body of owner feedback in the group.
Hallmark MA0414X-7A 1 HP…
- 33 GPM at 207 ft head
- 230V with built-in capacitor start
- Solid stainless steel body
Hallmark MA0343X-4 1/2 HP…
- 25 GPM at 150 ft head
- 115V at only 6.5 amps
- Stainless steel and thermoplastic body
VEVOR 1 HP 115V Submersible
- 37 GPM at 207 ft head
- Built-in check valve and filter mesh
- IP68 stainless frame with 33 ft cord
As an Amazon Associate we earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
All 12 Well Pumps Compared Side by Side in 2026
Every pump below, with the specifications that actually determine whether it fits your well. Flow, head, voltage and material are the four numbers worth comparing before anything else.
| Product | Specifications | Action |
|---|---|---|
|
Hallmark MA0414X-7A 1 HP Deep Well Submersible
|
|
Check Latest Price |
Acquaer CJE100-1 Convertible Jet Pump
|
|
Check Latest Price |
|
Hallmark MA0343X-4 1/2 HP Deep Well Submersible
|
|
Check Latest Price |
Red Lion RJS-100 1 HP Premium Jet Pump
|
|
Check Latest Price |
|
VEVOR 1 HP Deep Well Submersible
|
|
Check Latest Price |
Wayne SWS50 1/2 HP Cast Iron Jet Pump
|
|
Check Latest Price |
Goulds J5S 1/2 HP Shallow Well Jet Pump
|
|
Check Latest Price |
Aquastrong PGA150SA 1.6 HP Pump and Tank Kit
|
|
Check Latest Price |
Red Lion PWJET50 1/2 HP Shallow Well Jet Pump
|
|
Check Latest Price |
|
Hallmark MA0459X-14A 3 Inch Slimline Submersible
|
|
Check Latest Price |
Goulds J10S 1 HP Shallow Well Jet Pump
|
|
Check Latest Price |
Red Lion RL-SWJ75 3/4 HP Shallow Well Jet Pump
|
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
How We Chose These 12 Well Pumps
Selection started with specification accuracy, not star ratings. Retail star ratings for pumps are close to useless on their own, because a single early failure out of four hundred units drags a good pump down as hard as it drags a bad one. Every pump in this list had its horsepower, flow rate, max head, voltage and material cross-checked against the manufacturer’s own listing.
From there we weighted three things. First, review volume, because a pump with two hundred owners telling you the same thing is more informative than one with twenty. Second, real-world failure modes, which we read for the recurring complaints rather than the praise. Third, installability, since a pump that needs a control box, a splice kit nobody included, or a two-person lift into a casing has a higher failure rate before it ever starts.
We also excluded pumps whose listings could not be verified against a datasheet. Where a pump is strong on one axis and weak on another, we say so. A cheap stainless submersible that burns out in three months is not a bargain, and we do not present it as one.
1. Hallmark MA0414X-7A 1 HP 230V Submersible – Best Overall
Pump, Deep Well Submersible Pump, 1 Hp, 230V, 33 Gpm, 207 feet, Stainless Steel, Long Life
- 1 HP
- 230V
- 33 GPM
- 207 ft max head
- Solid stainless steel body
Pros
- Strong consistent pressure with quiet running
- Built-in capacitor start so no control box is needed
- Solid stainless steel body resists corrosion
- Compact at 28 pounds for a 1 HP pump
- Includes a splice kit and manual
Cons
- No built-in check valve
- thin-gauge power lead
- One-year parts and labor warranty
This is the pump I would put in a house with a mid-range deep well and no unusual water chemistry. It puts out 33 GPM at up to 207 feet of head on 230V, which covers the majority of residential deep wells without pushing the motor to its limit. The body is solid stainless steel with a heavy duty thermoplastic discharge, so the wetted parts that see corrosion first are the ones built for it.
The detail that separates it from most 1 HP submersibles is the built-in 1 HP capacitor start. It runs without a control box, which removes a box, a set of relay contacts and one of the most common reasons a submersible gets returned. Owners working deep drilled wells and irrigation report the kind of steady pressure that most budget pumps cannot hold.
Reviewers also note it is compact and lighter than comparable 1 HP units while drawing less amperage, and several report it replacing far more expensive pumps outright. At 28 pounds it is still a two-person lift into a deep casing, but it is manageable where a 41 pound surface pump is not.
The honest drawbacks are the same ones owners repeat: there is no built-in check valve, so you buy one separately, and the power lead and ground wire are thin gauge by the standards of a premium unit. A minority of owners report failures inside the first few months, which is why the one-year warranty is thin. Set the pump high enough off the bottom of the casing that debris cannot reach the intake, and the clogging complaints largely disappear.
Check these specs before you buy
Confirm your supply is 230V, not 220 or 115. This pump will not run on 115V and the listing says so plainly. Second, confirm your static water level plus your pressure requirement in feet of head does not exceed 207 feet. Third, budget for a check valve and a proper foot valve; neither is included.
Where it falls short
It is not the right choice for a well with heavy sand or manganese load, where a thermoplastic discharge ages faster than cast iron would. It is also not the right choice for a 3-inch narrow casing, because the body is a full 4 inches. For either situation, look at the slimline option later in this list.

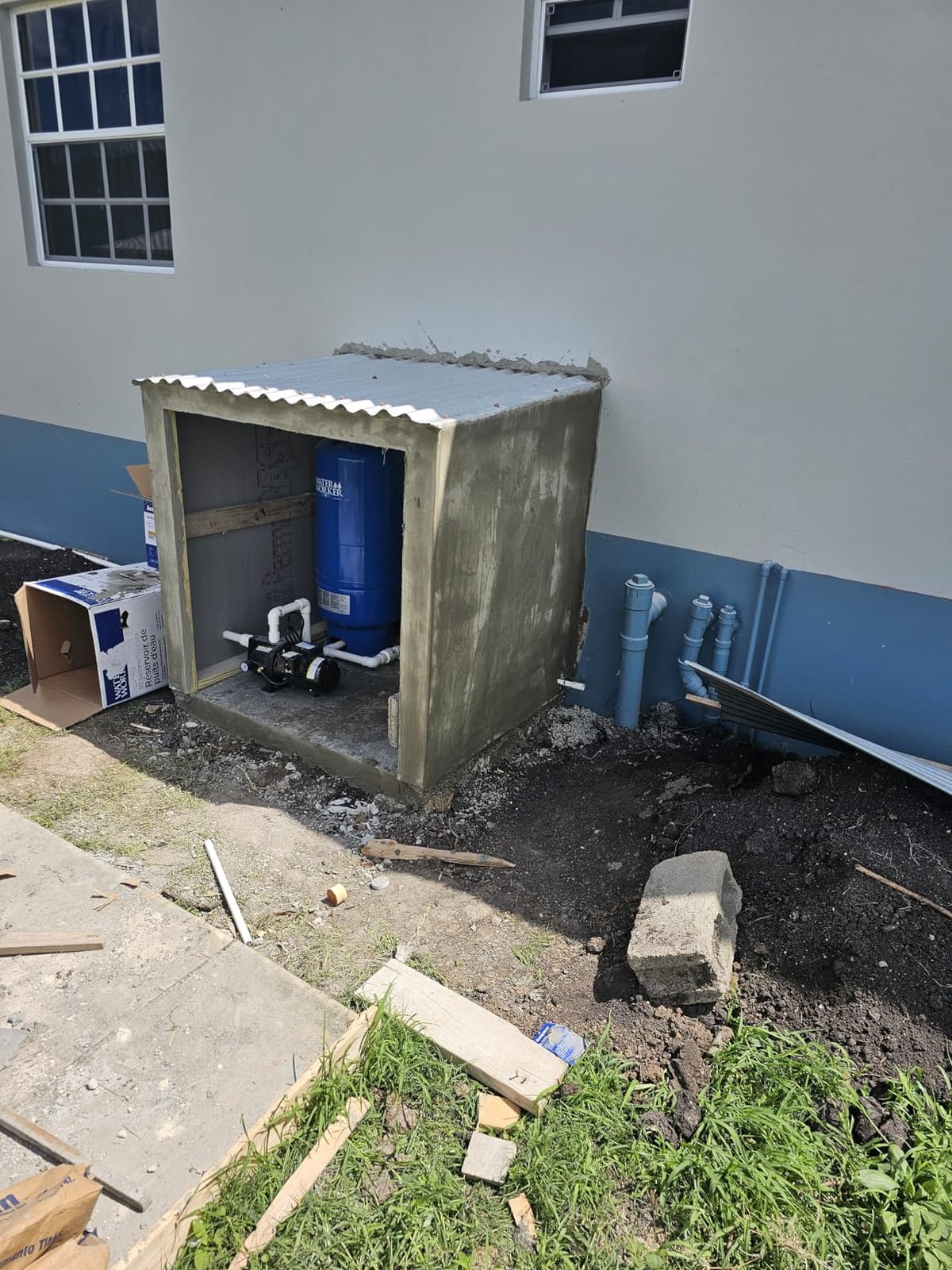

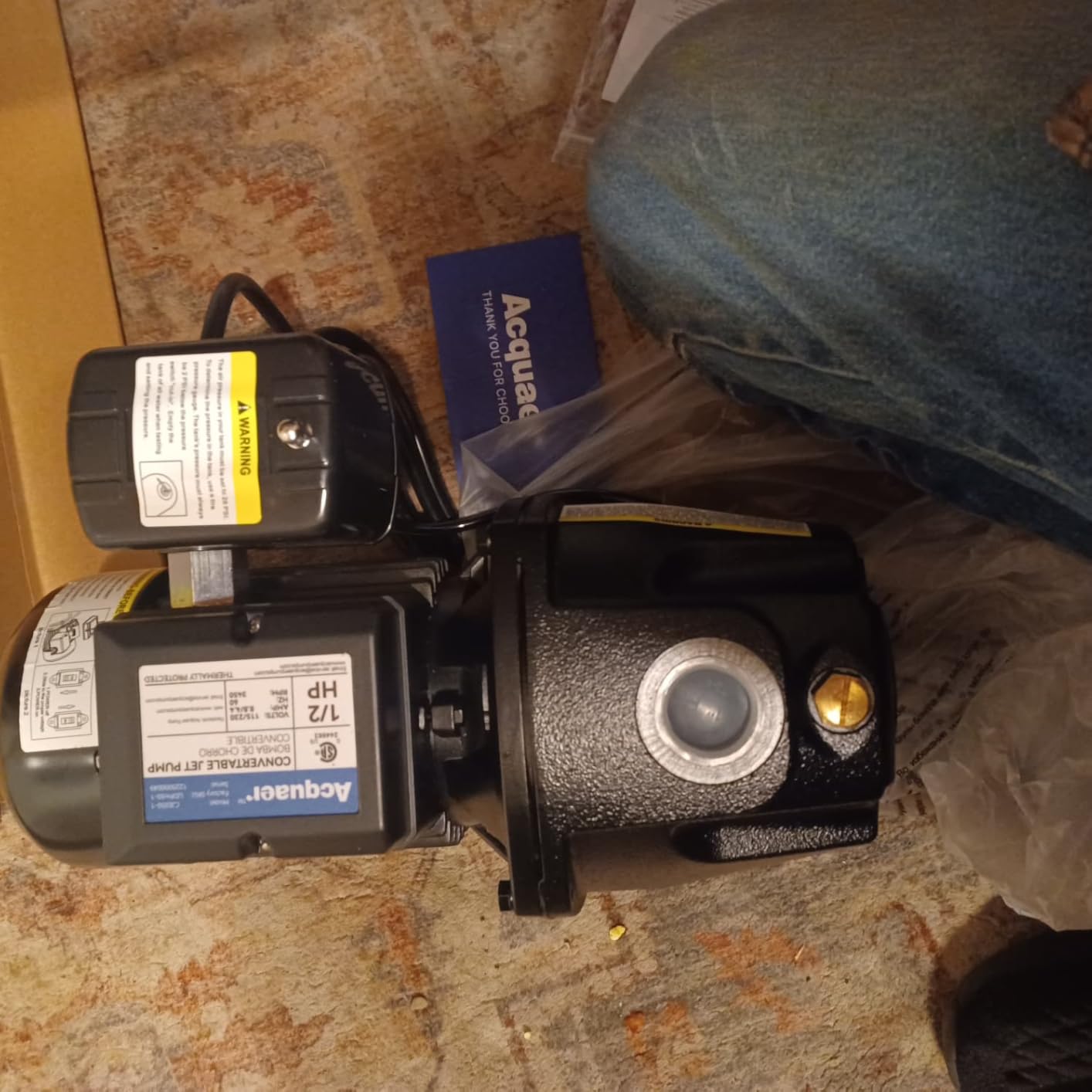

2. Acquaer CJE100-1 Convertible Jet Pump – Shallow or Deep on One Unit
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
- 1 HP
- 25.9 GPM
- 0-25 ft or 26-90 ft
- 115V/230V dual voltage
Pros
- One unit covers shallow and deep well installations
- Ejector and venturi kit included for the two-pipe setup
- Dual voltage motor
- factory set to 230V
- Built-in thermal overload protects against dry running
- Cast iron volute is well sealed
Cons
- 20-40 PSI operating window is low
- Heavy at 36.5 pounds
- Some early motor or switch failures
A convertible jet pump is the practical answer when you do not want to bet on which installation you end up with. This one runs as a single-pipe shallow well setup from 0 to 25 feet, or as a two-pipe deep well setup from 26 to 90 feet once you add the included venturi and ejector kit. That flexibility is genuinely useful on a property where the pump house pad is not finished.
The motor is dual voltage, factory set for 230V but switchable to 115V, which means it can go into a cabin or a workshop circuit as easily as a main house panel. Rated flow is 25.9 GPM, enough for a large home on a shallow well, and the automatic pressure switch starts below 20 PSI and cuts off above 40 PSI for hands-off operation.
Thermal overload protection is built in and shuts the motor off if the pump loses water, which is the single best protection against the most common way jet pump motors burn out. The cast iron casing and sealed volute hold up well to the abuse of a pump house that gets dusty in summer.
The 20 to 40 PSI window is the thing to think about hard. It is lower than the 30 to 50 PSI typical of the premium pumps in this group, so fixtures will feel a little softer at the low end. At 36.5 pounds it is also an awkward one-person lift, and a small share of owners report early motor or switch failures, so the warranty terms matter more here than the sticker.
Check these specs before you buy
Decide your suction lift before you buy, because that determines whether you need the ejector kit at all. Anything over 25 feet of lift and you need the two-pipe configuration with the venturi and ejector installed. Also decide whether 20 to 40 PSI is enough for your showers, or whether you want the 30 to 50 PSI band.
Where it falls short
Do not try to push this beyond 90 feet. That is a deep well job and a submersible handles it better. It is also a poor choice for a home that already has municipal water and needs only a booster, because the automatic switch has no adjustable high limit to match an existing system.

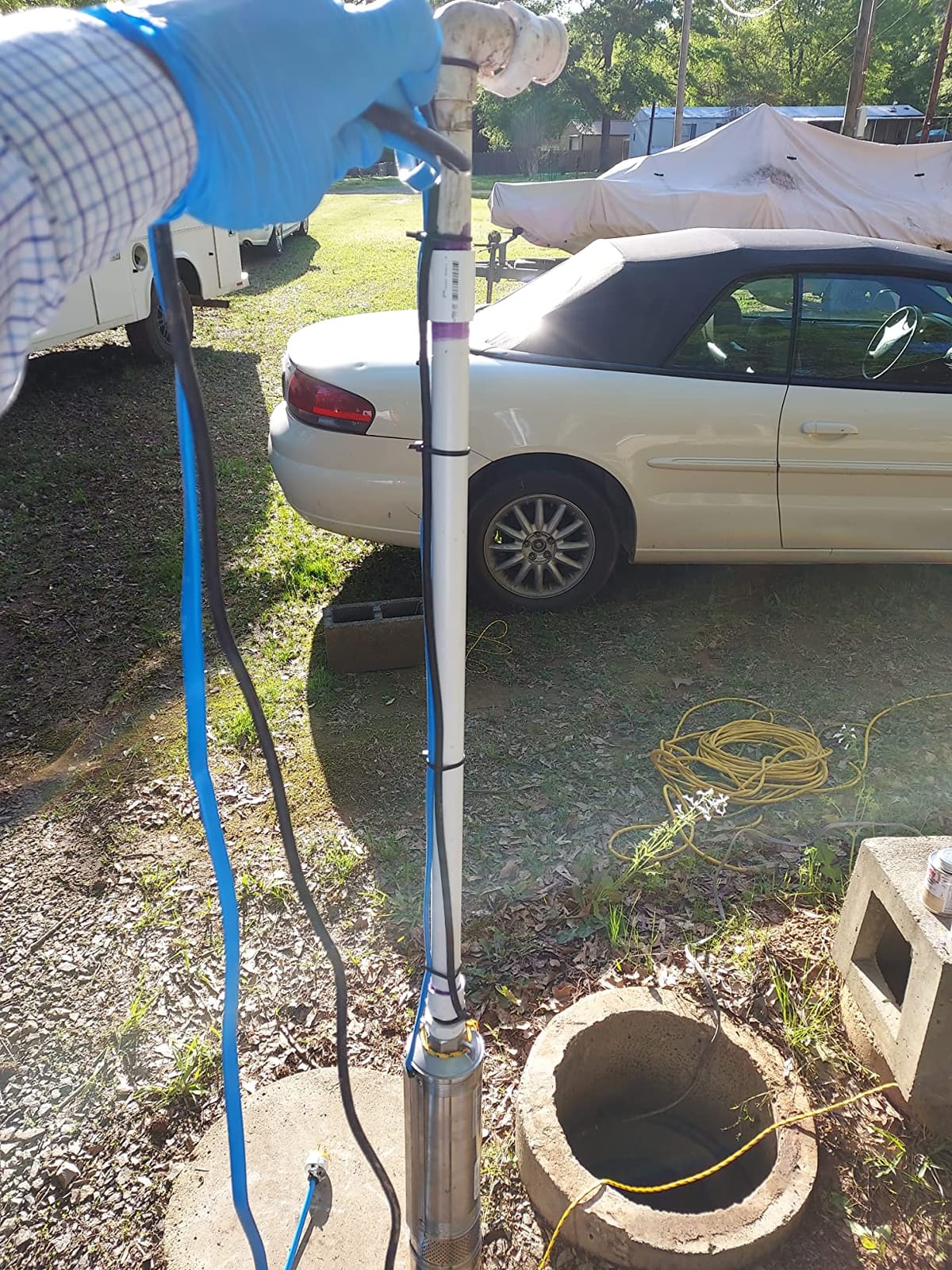

3. Hallmark MA0343X-4 1/2 HP 115V Submersible – Best Rated in the Group
Hallmark Industries MA0343X-4 Deep Well Submersible Pump, 1/2 hp, 110V, 60 Hz, 25 GPM, 150′ Head, Stainless Steel, 4″
- 1/2 HP
- 115V at 6.5 amps
- 25 GPM
- 150 ft max head
Pros
- Highest average rating of the 12 pumps listed
- Runs on a standard 115V household circuit
- 25 GPM and 150 ft of head covers most residential deep wells
- Stainless steel and thermoplastic body resists corrosion
Cons
- 25 GPM ceiling limits larger homes
- Check valve must be added separately
- One-year warranty
This is the highest rated pump on the list, at 4.5 stars across 854 reviews, and the reasons are consistent. It runs on 115V at 6.5 amps, which means an ordinary household circuit with no modification. If your well is within 150 feet of head and you do not need more than 25 GPM, very few pumps serve you better for the effort involved.
Twenty-five GPM is roughly three times the sustained flow a typical family uses at peak, which is why this horsepower size works so often. The stainless steel and thermoplastic body resists corrosion over long submersion, and owners report strong flow and head from deep drilled wells without drama.
The practical value is that it does not require a control box, a dedicated 230V run, or a heavier breaker. For a cabin, a guest house, or a replacement pump where the wiring is already 115V, that is the whole decision. Owners with 75 percent five-star share describe it as reliable and quiet.
The ceiling is real, though. A household with a large family, a well softener, and irrigation on the same system will find 25 GPM limiting, and 150 feet of head stops being enough once the static level approaches 125 feet. A check valve has to be fitted separately in most installations, and the one-year parts and labor warranty is the shortest meaningful protection in this group.
Check these specs before you buy
Add your static water level to roughly 33 feet of head for every PSI of household pressure you want, then compare to 150 feet. If the total comes within about 20 feet of the rating, move up a size. Also confirm your casing is at least 4 inches, because this is a full-diameter body.
Where it falls short
It cannot handle a 230V-only circuit, and there is no 3-wire or control box option, so if your well runs deep you will outgrow it. It is also not the pump for a property with livestock, irrigation, or any sustained non-household demand.

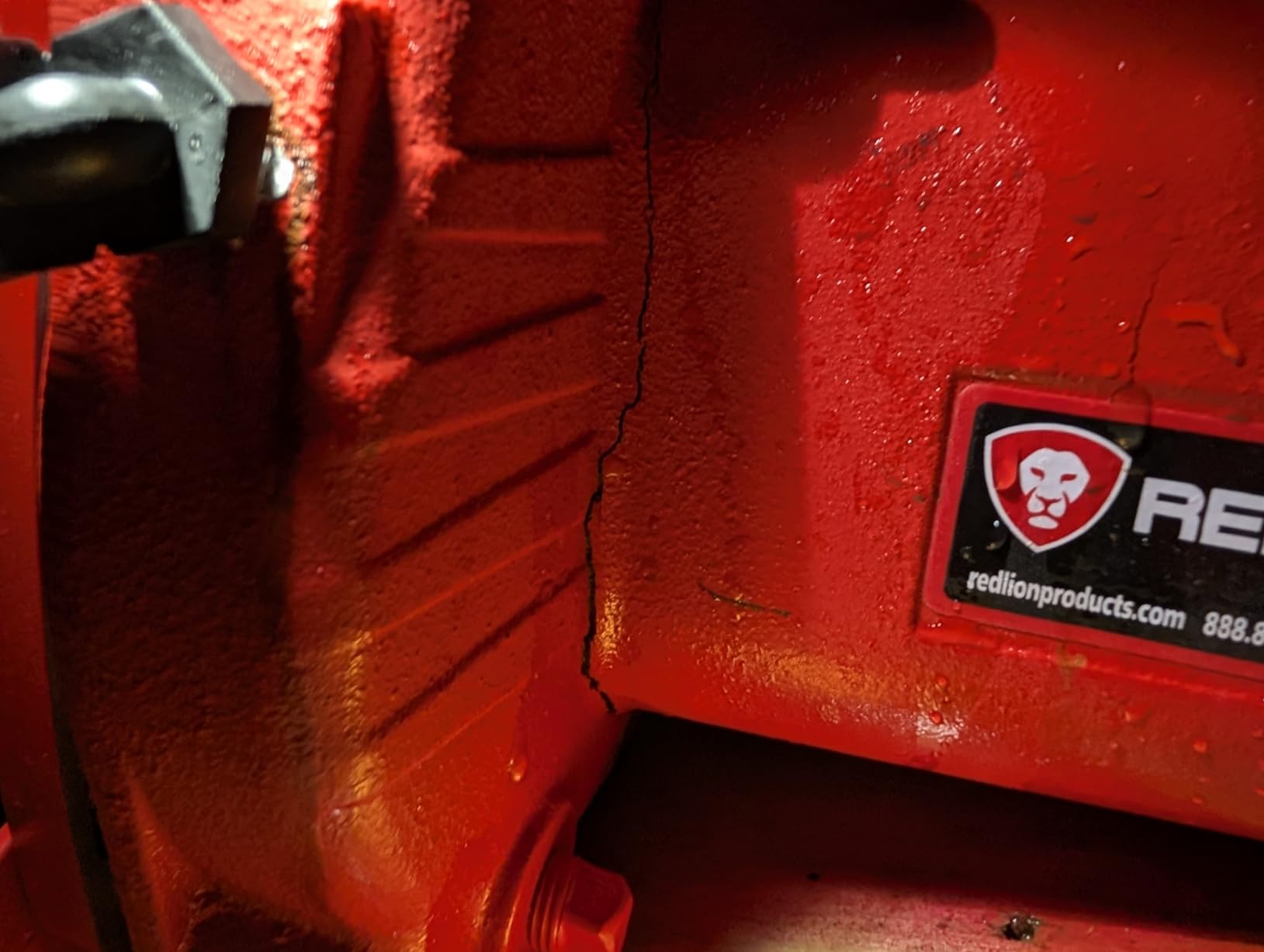

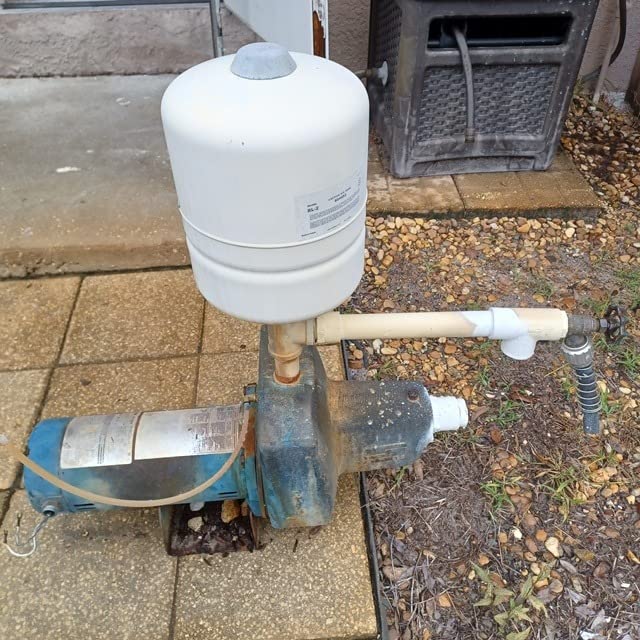

4. Red Lion RJS-100 1 HP Premium Jet Pump – Switch and Gauge Included
Red Lion RJS-100-PREM 115/230V, 1 HP, 23 GPM, Shallow Well Jet Pump
- 1 HP
- 23 GPM
- 150 ft max head
- 65 PSI max pressure
- Cast iron
Pros
- Cast iron casing and volute built for long service
- Factory pre-set 30/50 PSI switch and pressure gauge included
- Dual voltage motor with a starting capacitor
- 23 GPM covers large homes and small farms
Cons
- Runs hot or noisy for some owners
- 41 pounds makes it a two-person job
- One-year warranty
Two details make this one different from every other jet pump in the list. The 30/50 pressure switch comes factory pre-set, and the pressure gauge is in the box. On most pumps you are immediately hunting for a gauge fitting and wondering whether the switch is set correctly. Here it arrives ready to run.
The rest is conventional and good. A rugged cast iron casing and volute with a glass-filled thermoplastic impeller and diffuser, 1-1/4 inch FNPT suction and 1 inch FNPT discharge, and a dual voltage motor that includes a capacitor for starting power. It is CSA listed for the USA and Canada, rated 23 GPM, 150 feet of max head and 65 PSI max pressure.
Owners using it for irrigation and small farm duty report that 23 GPM is genuinely ample. The 41-pound weight is the reason it needs two people, which matters if you are working alone on a pump house pad.
This is the lowest rated pump in the group at 3.9 stars, with a 17 percent one-star share. That share is tied to specific things rather than general dissatisfaction: owners reporting the pump running hot or noisy, some needing a cooling interval between cycles, and some early motor failures. The 30/50 switch helps short cycling, but if your pressure tank is undersized the pump will still cycle hard.
Check these specs before you buy
Confirm your suction lift is under 25 feet. This is a shallow well pump and it will not prime reliably from deeper. Plan for a properly sized pressure tank, because the recurring noise and heat complaints trace back to cycling. And budget for two people on install day, because 41 pounds over a pump house lip is awkward.
Where it falls short
It is a poor choice for hard or abrasive water, because a glass-filled thermoplastic impeller wears faster than the stainless options in this group. And with a 17 percent one-star share, you should buy it with the expectation that you may be troubleshooting in year two.

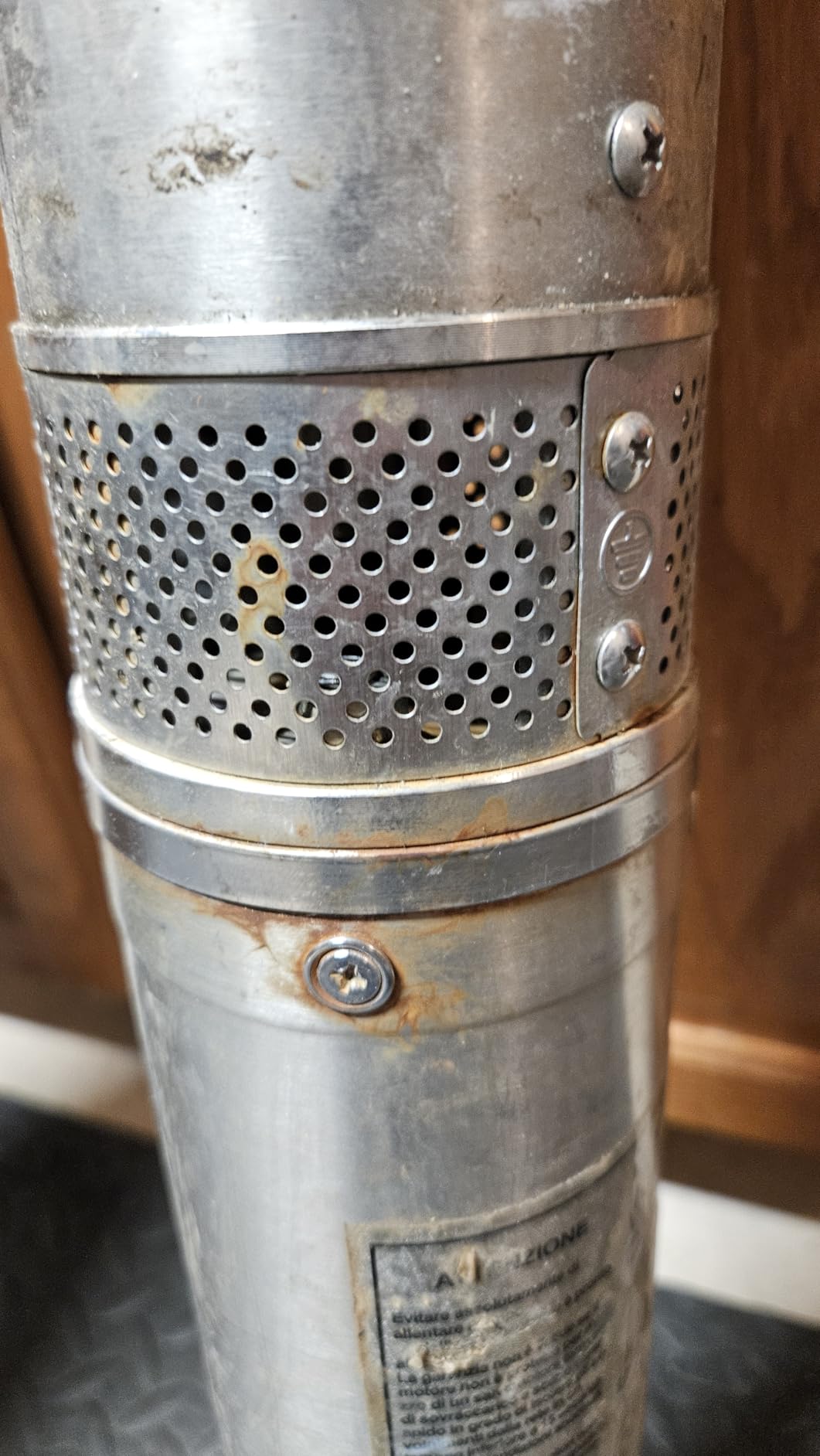

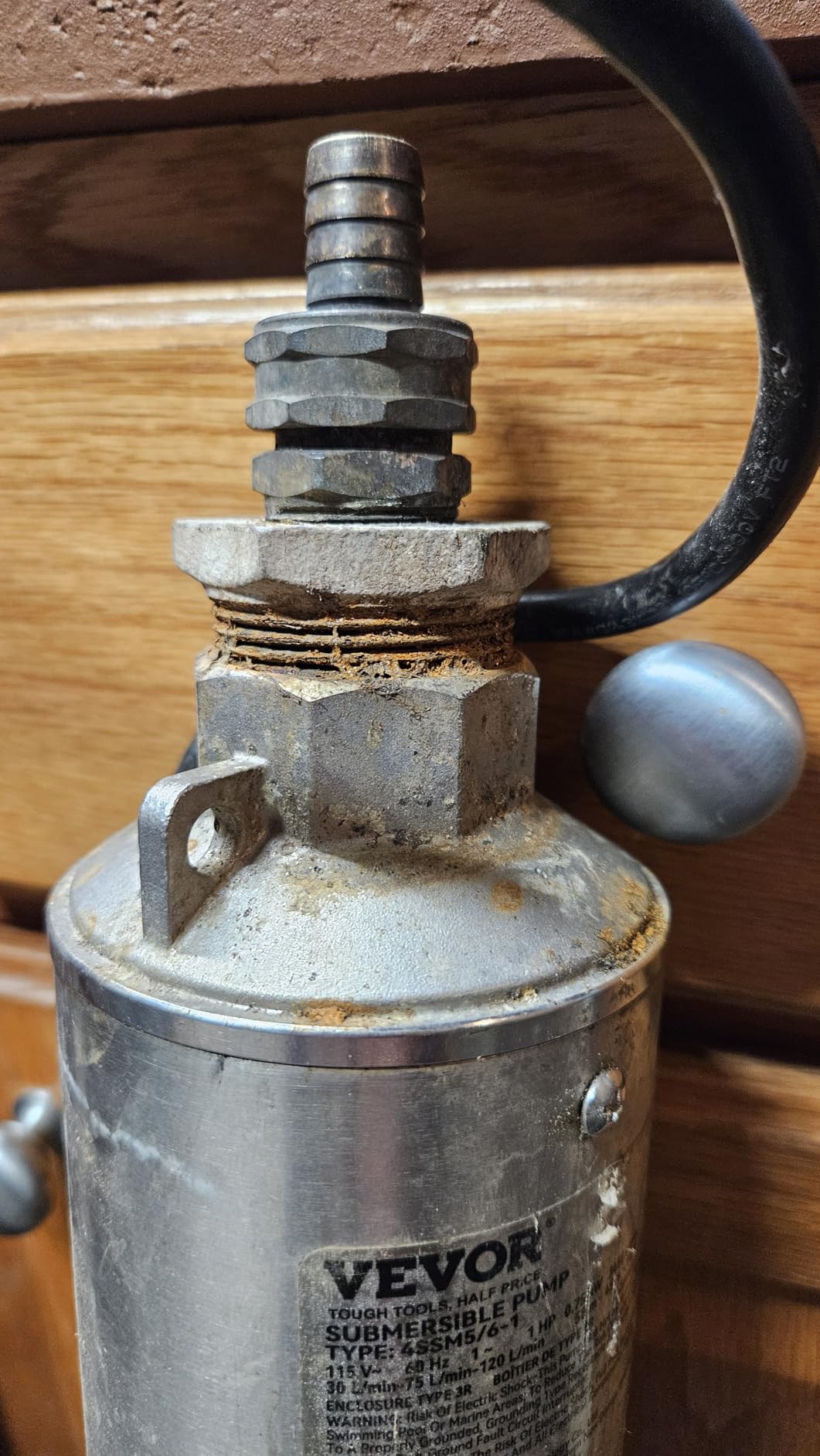

5. VEVOR 1 HP 115V Submersible – Best Value for 115V Circuits
VEVOR Deep Well Submersible Pump 1 HP 115V/60Hz 37 GPM Flow 207 ft Head
- 1 HP
- 115V
- 37 GPM
- 207 ft max head
- IP68 stainless frame
Pros
- Highest flow rating of the 12 pumps listed
- Runs on 115V so a standard circuit works
- Built-in check valve and stainless filter mesh simplify install
- IP68 waterproof frame with copper motor and overheat protection
- 33 ft power cord with US plug included
Cons
- Some builds fail within days or weeks
- High startup draw on 120V
- Light gauge supplied cord
The spec sheet here is the most generous in the group. Thirty-seven GPM at 207 feet of head from a 1 HP 115V motor is a strong curve, and it means a household circuit is enough power. The 6-stage thermoplastic impellers sit in a full stainless steel frame rated IP68 for waterproofing, and the copper motor has built-in overheat protection.
Installation is the easy part. The built-in check valve and stainless steel filtration mesh remove two items you would otherwise buy and fit, and the 33 foot power cord with a US plug is long enough to reach a typical shallow-set submersible without splicing. Owners report strong, steady pressure and quiet running, with a 79 percent five-star share.
This is the value pick for a specific reason: it removes the two costs that quietly inflate a submersible purchase, the control box and the check valve. Add the price of a control box to a comparable pump and the gap between the options narrows fast.
The complaint that matters is durability. A small group of owners report the motor burning out within days to weeks, and a few report unresponsive manufacturer support on returns. There is also a real electrical caution: 1 HP on 120V draws heavy startup current, so a small generator or a long extension run will not start it reliably, and the supplied cord is light gauge.
Check these specs before you buy
Confirm the 120V circuit can carry the running amps, and do not plan on powering it from a generator or a long corded run. Check your static level against 207 feet of max head with margin. And know that a 1-1/4 inch NPT discharge needs a fitting to match whatever drop pipe you have.
Where it falls short
It is not a long-service choice on a well with sand, iron or manganese in the water, which is exactly where the low build cost shows up. If your well produces abrasive water, spend the money on a cast iron or heavier stainless pump instead.
6. Wayne SWS50 1/2 HP Cast Iron Jet Pump – Best for Cabins
WAYNE SWS50 1/2 HP Cast Iron Shallow Well Jet Pump
- 1/2 HP
- 120V/240V dual voltage
- 375 GPH max flow
- 3-year warranty
Pros
- Cast iron volute with a 3-year warranty
- Pressure switch pre-set at 30-50 PSI
- Owners report installing it themselves without difficulty
- Wayne customer service repeatedly praised for setup support
Cons
- Mounting bracket is flimsy and needs bracing
- Primes slowly on long suction lines
- 7/8 inch NPT discharge needs an adapter
For a cabin, a cottage, or a small home where water use is modest, this pump is hard to argue with on a spec basis. Half a horsepower, a cast iron volute with a dedicated priming port, dual voltage 120V/240V with the motor factory set to 240V, and a 30/50 PSI pressure switch pre-set for automatic operation. Max flow is listed at 375 gallons per hour.
The 3-year warranty is the standout. Most pumps in this roundup carry one year, and a shallow well pump that runs easily for eight hours a day should not be on a one-year clock. Owners who understand the priming routine rate it highly for quiet, cool running and fast pressure recovery. It is also assembled in the US from domestic and foreign parts, and Wayne customer service comes up repeatedly in reviews as responsive on setup questions, which matters more than people expect for a pump that is mostly a plumbing item.
The bracket is the thing to brace. It is flimsy, and on a pump house wall that flexes, a running pump will walk. There is no pressure gauge port and no gauge included, so plan on a tee and a gauge. And on long suction lines it primes slowly and needs re-priming every few minutes, which is a design reality of small jet pumps rather than a defect in this one.
Check these specs before you buy
Check the discharge size before you plan the plumbing. The 3/4 inch NPT discharge often needs an adapter to reach one-inch pipe. Confirm your suction lift is comfortably under 25 feet, and if it is over 20 feet, plan on a short suction line to avoid the slow-priming complaints.
Where it falls short
Some owners read it as an economy model and report lighter build than they expected, and 375 gallons per hour is not enough for a full family home with irrigation. If your peak demand is more than a couple of fixtures, step up to the 3/4 HP or 1 HP models.

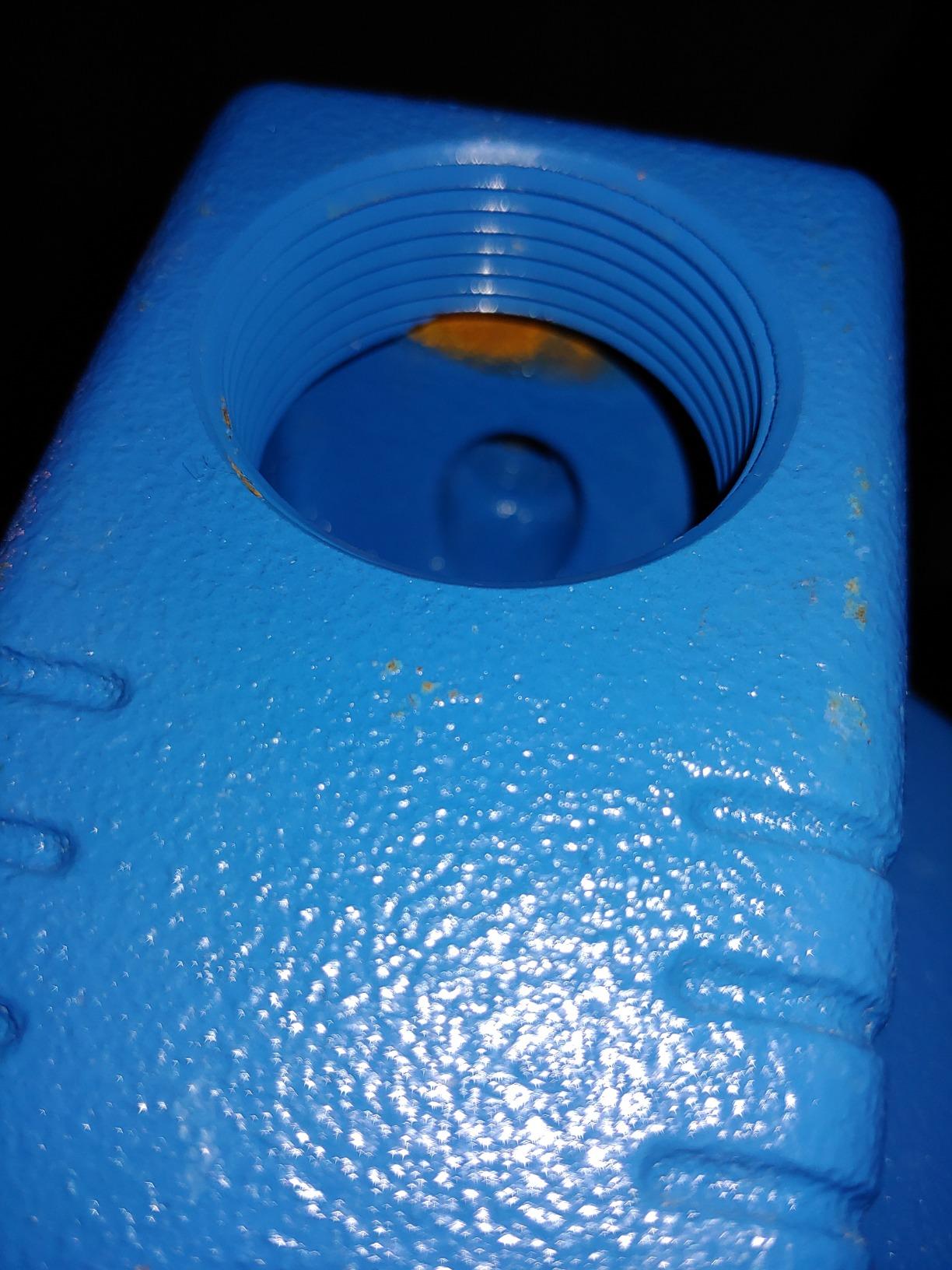

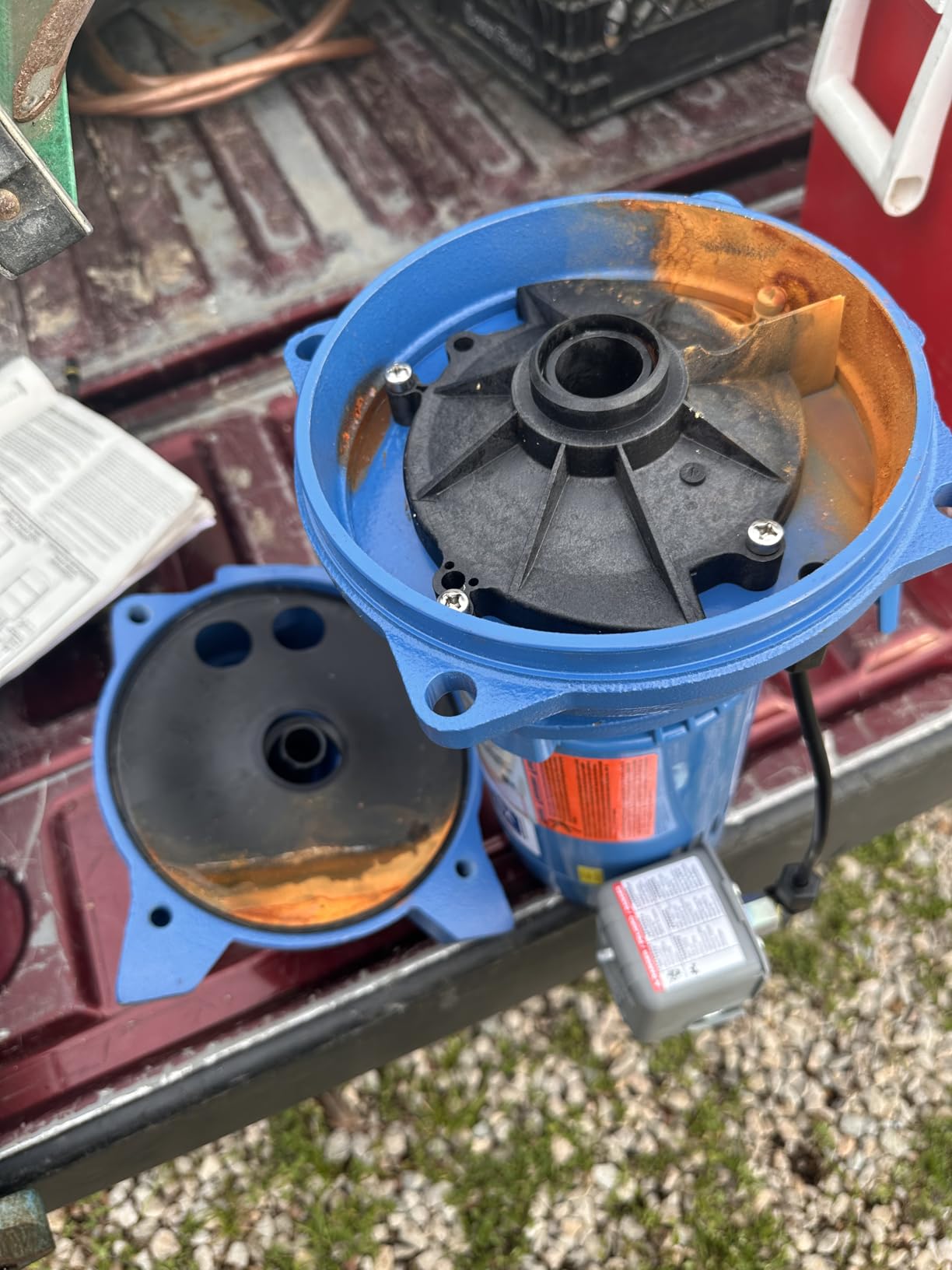

7. Goulds J5S 1/2 HP Jet Pump – Most Versatile for Long Service
Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
- 1/2 HP
- 115/230V capacitor start
- 3500 RPM
- 16.5 GPM
- Stainless steel shaft
Pros
- Built in the USA with quality internal components
- Stainless steel shaft and built-in overload with automatic reset
- Dual voltage makes a 120V to 240V change simple
- Owners report long service replacing older units
- Works as a booster as well as a shallow well pump
Cons
- Heaviest half horsepower unit here at 40.9 pounds
- Needs anti-backflow and careful tank plumbing
- One owner received a seized pump
This is the buy-it-once option. The J5S is a NEMA standard 1/2 HP, 115/230V capacitor start single phase pump running at 3500 RPM, built in the USA, UL778 listed, with a stainless steel shaft and a built-in overload that resets itself. That combination of shaft and overload protection is where the long service life comes from.
It arrives with an AS4 pressure switch preset at 30-50 PSI and has 1.25 inch NPT suction and 1 inch NPT discharge. Rated flow is 16.5 GPM. Owners describe it as solidly built with good water pressure and long working life, frequently replacing a cheaper pump that could not hold pressure, and it works as a pressure booster as readily as a shallow well pump.
The stainless steel shaft deserves a specific mention. Shafts are a common early failure point when corrosion eats into the bearings, and a stainless shaft is a meaningful upgrade on a half horsepower pump that is cheap to buy and annoying to replace.
Two cautions. At 40.9 pounds it is heavy for its output, so plan the lift. And it needs an anti-backflow arrangement and careful pressure tank plumbing, or it will cycle rapidly and wear out early. One owner also received a seized pump with no way to return it in time, which is worth weighing against the warranty handling of more familiar brands.
Check these specs before you buy
Confirm 16.5 GPM is enough for your peak household demand plus any irrigation. Plan the anti-backflow device and the tank size before the pump arrives, not after. And confirm you have help available for a 41-pound lift onto a pump house base.
Where it falls short
It carries the highest purchase cost of any half horsepower pump in this roundup, and the value case rests entirely on service life. If you are replacing a working pump on a short timeline rather than planning a decade of service, there are cheaper options that do the same job today.

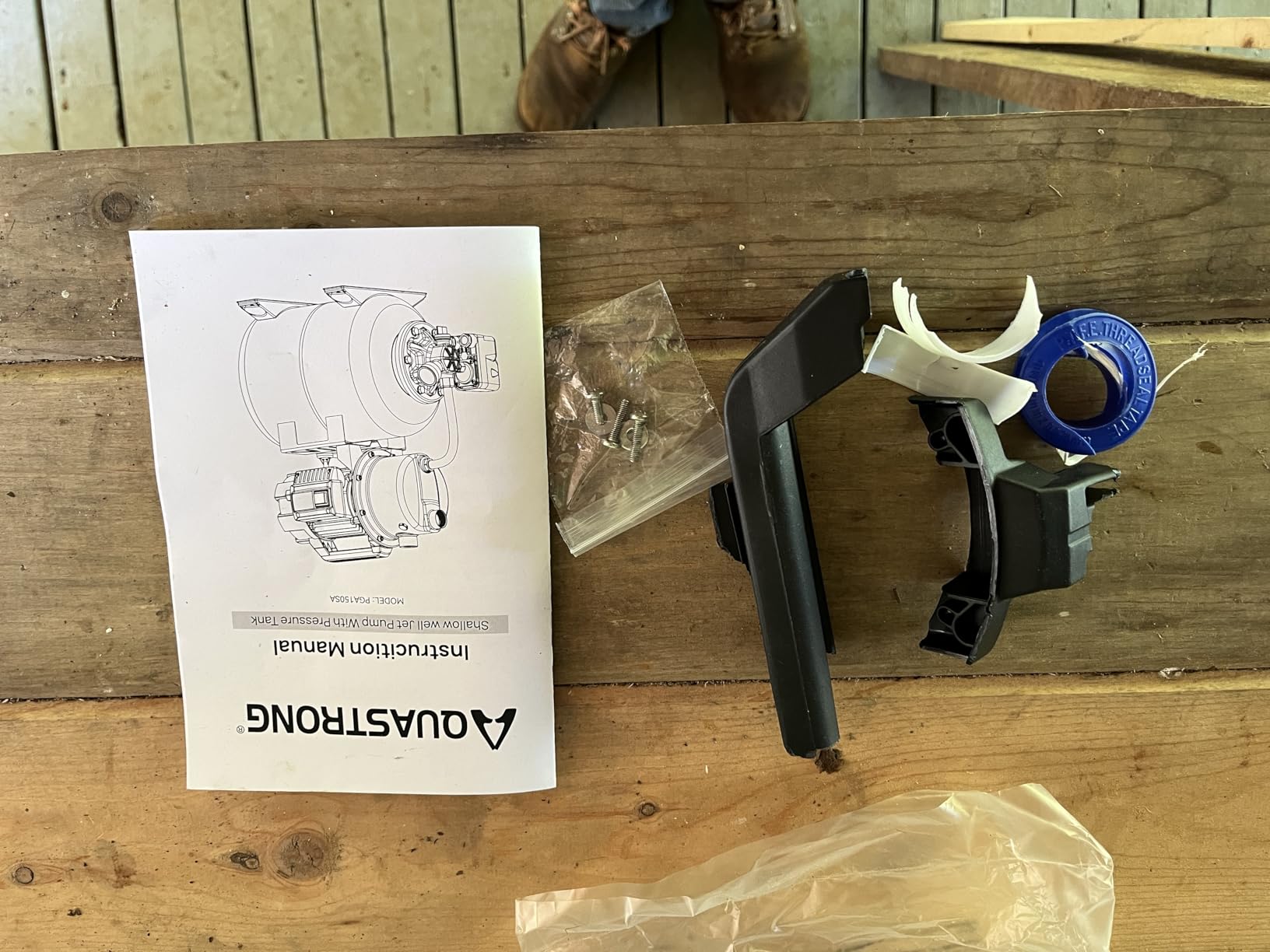

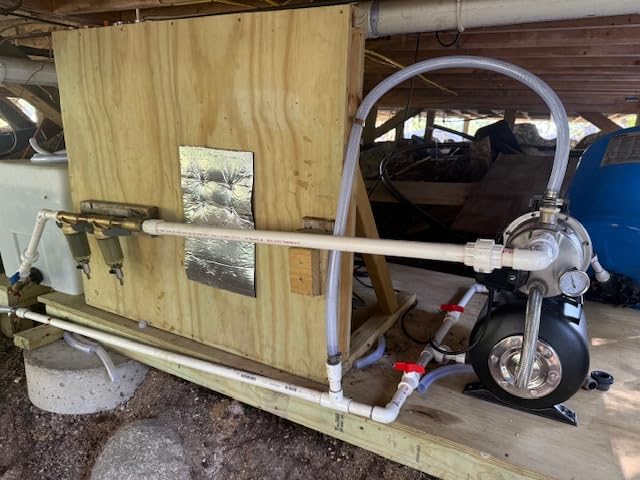

8. Aquastrong PGA150SA 1.6 HP Kit – Best Complete Kit
Aquastrong 115V Shallow Well Garden Pump, Stainless Steel, 1320 GPH, Automatic Water Booster Jet Pump for Home, Garden, Lawn,Irrigation,1.6 HP with Pressure Tank
- 1.6 HP
- 115V
- 1320 GPH
- 26 ft suction
- 164 ft max head
- Includes 5 gallon tank
Pros
- Only complete kit listed
- bundling pump
- 5 gallon tank and gauge
- Factory pre-assembled for quick installation
- Stainless housing with carbon ceramic mechanical seal
- Two-year warranty
Cons
- 20/40 PSI band is lower than most
- Needs priming and freeze protection
- 6.5 ft cord limits placement
If you want a working system rather than a component, this is the only pump in the roundup that arrives as a kit. The 1.6 HP capacitor motor, a compact 5 gallon pressure tank, a pressure gauge, the automatic 20/40 PSI switch and the carbon ceramic mechanical seal all come in one box, pre-assembled at the factory. Suction reach is 26 feet, max flow 1320 GPH, and max head 164 feet.
That matters for a specific buyer. If you are boosting city water into a cabin, running irrigation off a shallow well, or setting up a garden supply, this is a one-box decision rather than a pump, tank, switch and gauge shopping trip. The stainless steel housing and carbon ceramic seal target corrosion and leaking, and an overheat sensor plus a waterproof on/off switch handle the automation.
Owners rate it well precisely because of the turnkey nature of it. It installs quickly, runs quietly, and the automatic switch means you are not adjusting a cut-in and cut-out setting on day one.
Two limits stand out. The 20 to 40 PSI band is lower than the 30 to 50 PSI most pumps here use, so shower pressure at the low end is softer. And it still needs priming before startup and protection from freezing, which matters if the pump house is unheated. The 6.5 foot cord is also short, and the combined pump and tank footprint is the largest in the group.
Check these specs before you buy
Confirm 26 feet of suction is enough above your water level, with margin. Check that 20 to 40 PSI satisfies your fixtures, particularly showers. And confirm you have a spot for the tank as well as the pump, because the assembly is taller than a bare pump by a wide margin.
Where it falls short
It is not a whole-home well pump for a deep drilled well, and the 5 gallon tank is small by residential standards. For a home that depends on the pump for drinking water and household supply, buy the pump and size the tank separately.

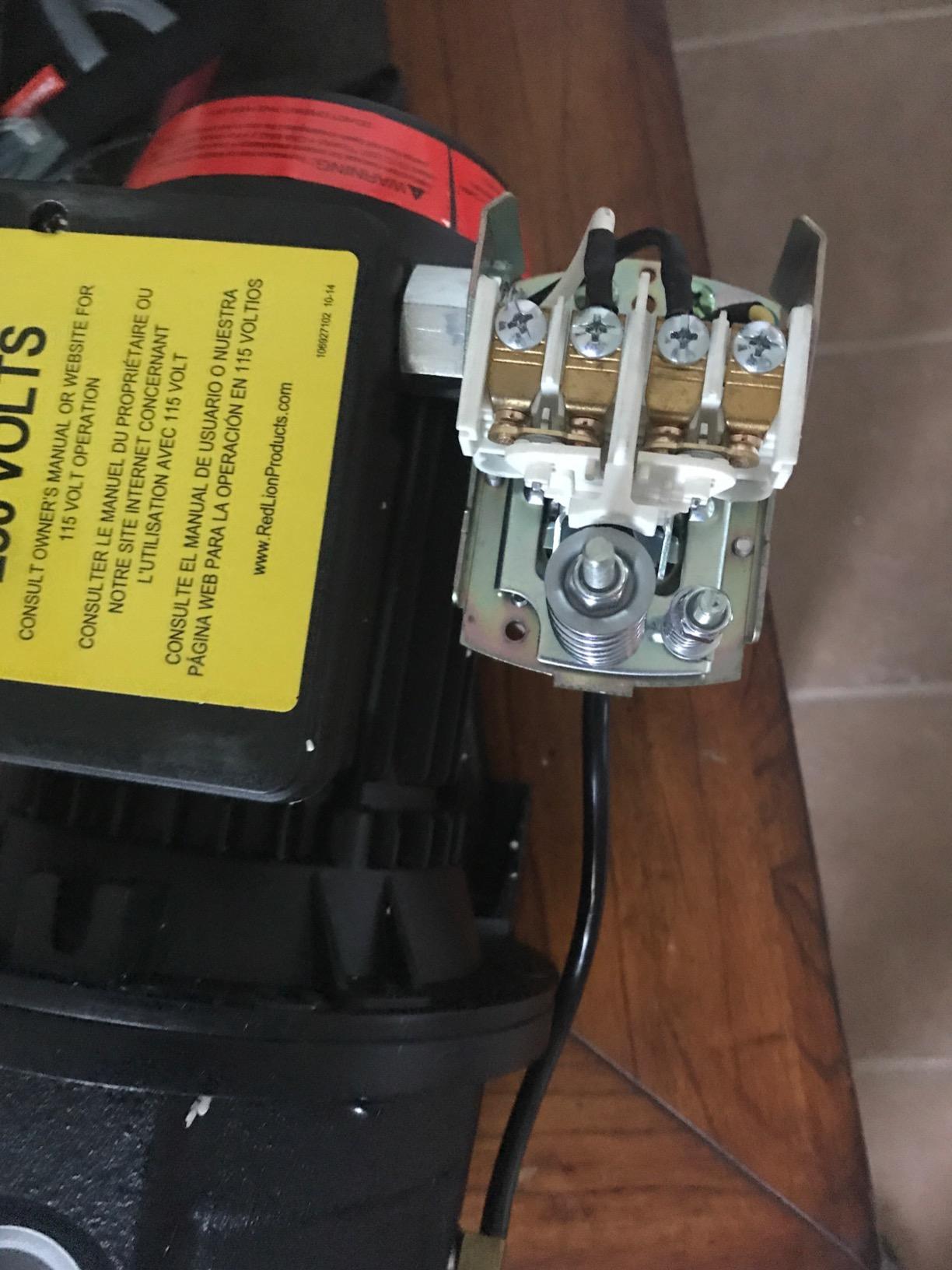

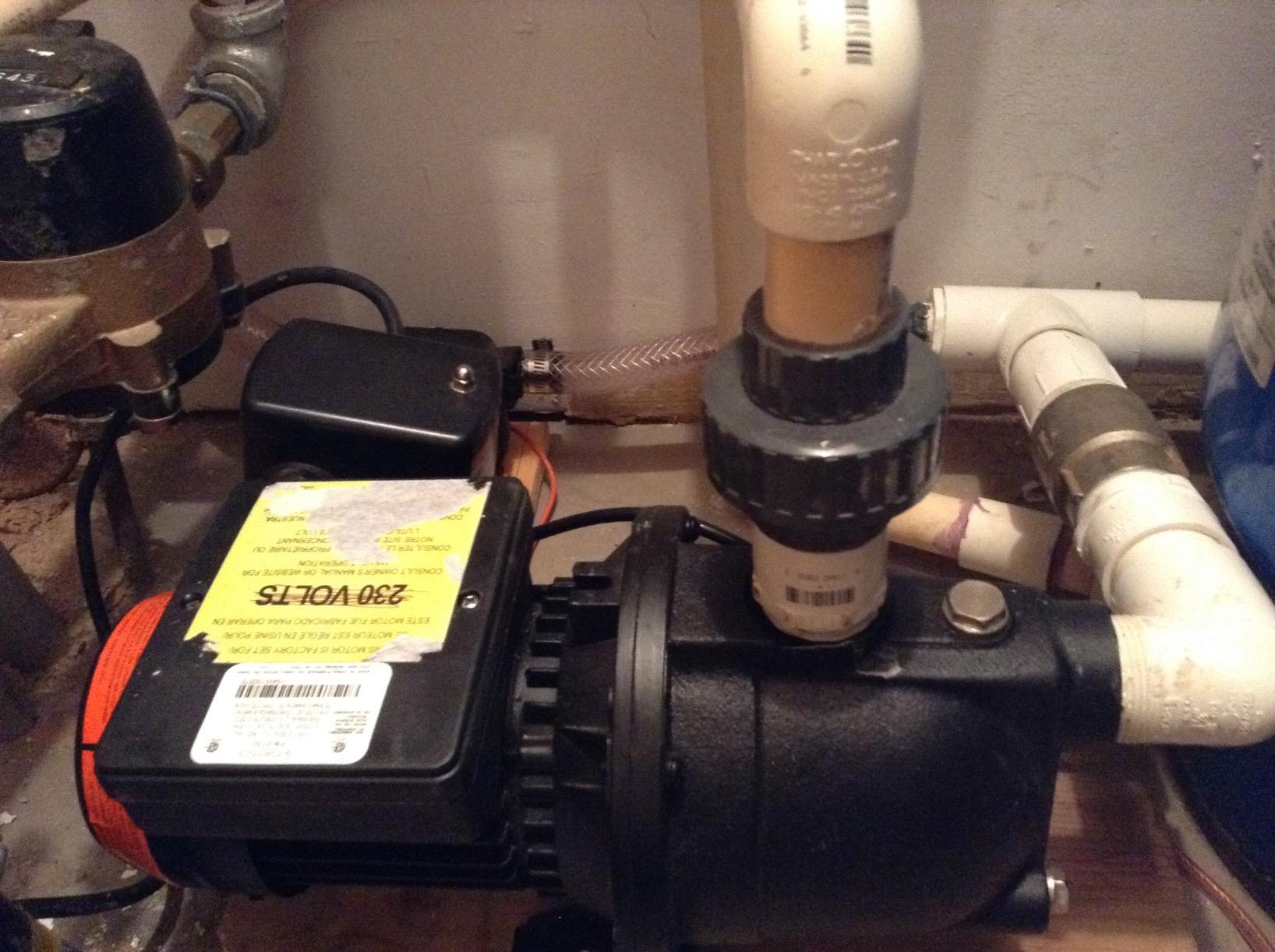

9. Red Lion PWJET50 1/2 HP Jet Pump – Best Potable Certified Option
Red Lion PWJET50, 115/230V, 1/2 HP, 7.4 GPM, Shallow Well Jet Pump
- 1/2 HP
- 7.4 GPM at 30 PSI
- 145 ft max head
- 63 PSI max pressure
Pros
- Cast iron casing and volute with glass-filled thermoplastic impeller
- Certified for potable water and CSA listed
- Dual voltage 115/230V
- Compact at 20.3 pounds for a half horsepower cast iron pump
Cons
- Only 7.4 GPM suits light demand
- Pressure gauge not included
- Check valve and foot valve sold separately
The distinguishing feature here is certification. This pump is certified for potable water and CSA listed in the USA and Canada, which is the specification to look for if it will be drinking water rather than irrigation or livestock. The cast iron casing and volute with a glass-filled thermoplastic impeller and diffuser are a proven shallow well combination.
It delivers 7.4 GPM at 30 PSI, draws 6.6 amps at 115V or 3.3 at 230V, has a 1-1/4 inch FNPT intake and 1 inch FNPT discharge, and tops out at 145 feet of head and 63 PSI. A 30/50 pressure switch is factory set, and at 20.3 pounds it is the easiest pump in the list to lift onto a pad alone.
Owners describe it as well built with reliable 30/50 PSI service, which is exactly what a cottage, a small cabin, or a single bathroom needs. The compact size and the light weight make it a genuinely practical fit for a tight pump house.
Seven point four GPM is the constraint and it is a hard one. That is enough for one bathroom and a kitchen, not for a family home. A 14 percent one-star share is the second highest here, and the pressure gauge is not included, so you are adding a tee and a gauge. Check valve and foot valve are also sold separately, which means two more parts to source before the pump runs.
Check these specs before you buy
Add up your realistic peak demand. Above roughly 8 GPM of household use, this is the wrong pump. Confirm you are comfortable buying the check valve, foot valve and pressure gauge separately, and factor in a lead time before you need water on a project timeline.
Where it falls short
It will not serve a home with more than one bathroom, and it will not carry irrigation. If your demand is anywhere near moderate, the Red Lion 3/4 HP or the Goulds J5S is a better fit for the same general footprint.

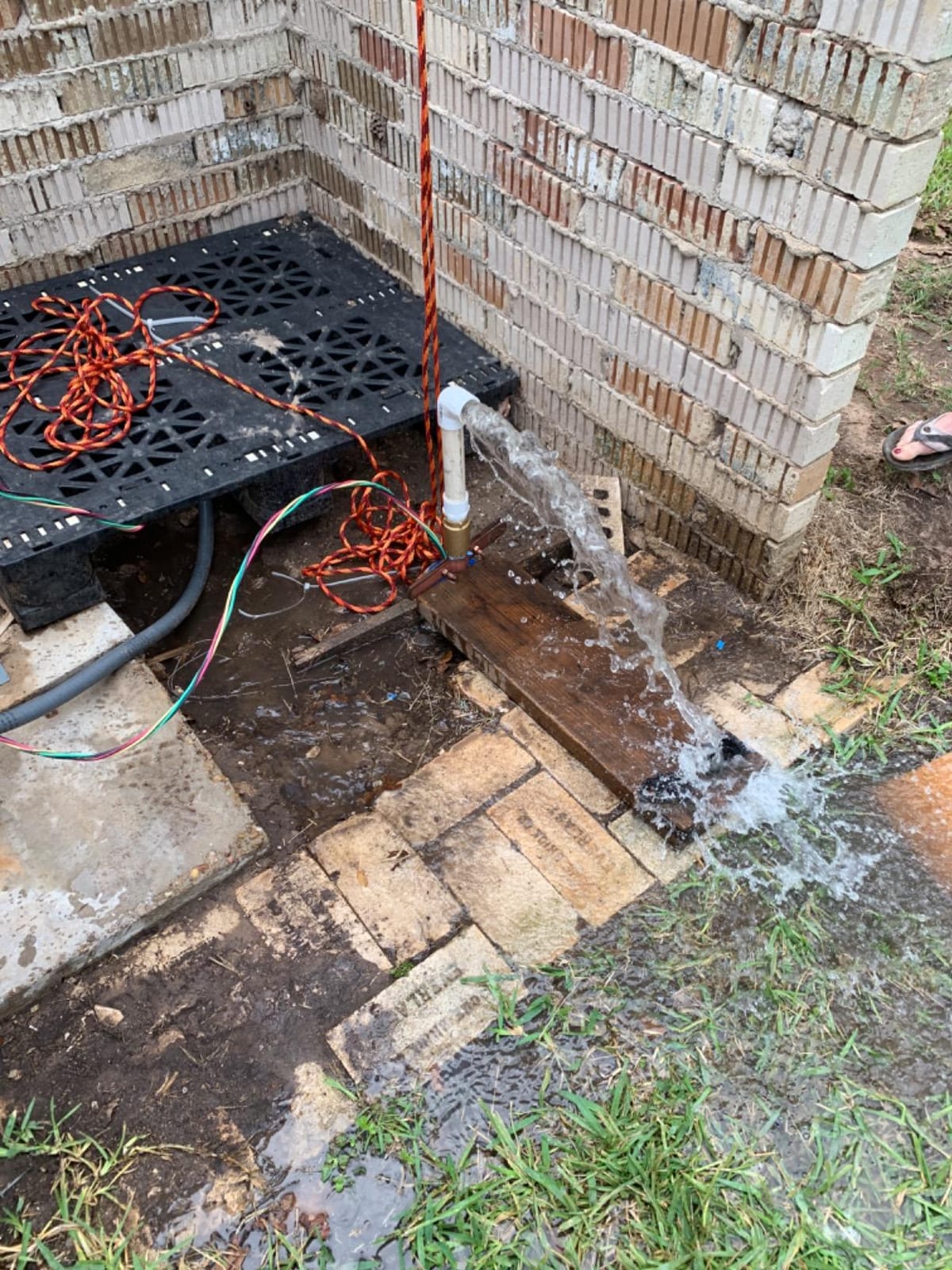

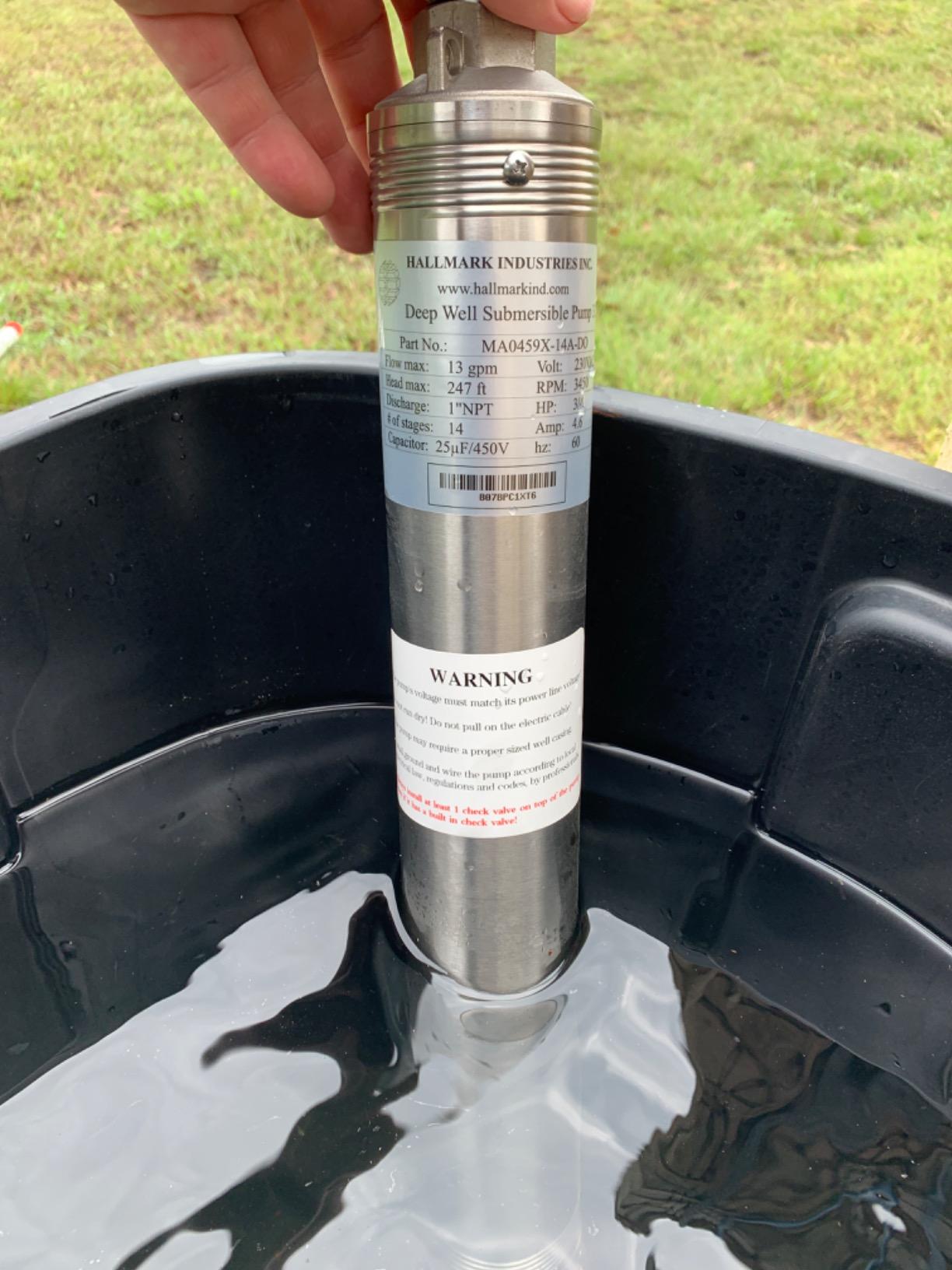

10. Hallmark MA0459X-14A 3 Inch Slimline Submersible – Best for Narrow Casings
Hallmark Industries MA0459X-14A Deep Well Pump, 3″ (3.3 Max), 3/4 HP, 230V/60Hz/1Ph, 14 Stage, 270′ Head, 13 GPM, 1″Npt, Stainless Steel Shell
- 3/4 HP
- 230V
- 13 GPM
- 270 ft max head
- 14 stage slimline
- Stainless shell
Pros
- Slim 3 inch body fits 4 inch casings with mineral buildup
- 270 ft of head and 14 stages suit deep wells
- Stainless steel shell at only 23.9 pounds
- Very quiet with no audible vibration in the house
Cons
- Arrives as two parts needing threadlocker and a splice kit
- Instructions are terse
- Conflicting wiring diagram reported on one unit
A 4 inch casing with heavy mineral buildup narrows long before the pump does. This 3 inch slimline body, rated 3.3 inches maximum, is the answer to that specific problem. It is 14 stages, 3/4 HP on 230V single phase, rated 270 feet of head at 13 GPM with a 1 inch NPT discharge, in a stainless steel shell weighing 23.9 pounds.
Two hundred seventy feet of head is the deepest rating of any pump in this roundup, and it comes in a package light enough that owners describe the lowering as manageable. The quietness gets called out specifically, with owners reporting it cannot be heard in the house even when running during a shower.
There are also several multi-year reports on this unit, and Hallmark phone support comes up as responsive and knowledgeable. For a pump that has to be pulled out of a deep casing to service, brand support that answers the phone has real value.
The friction is in the delivery format. This unit assembles in two parts and requires a waterproof splice kit plus threadlocker to extend the lead, and the instructions are terse and assume installer experience. One owner also reported conflicting wiring diagrams between the box and the motor. At 23.9 pounds it still takes two people for a deep lowering, so the weight is manageable rather than easy.
Check these specs before you buy
Measure your casing ID and check for scale build-up before assuming a 3 inch body will pass, and confirm your well is genuinely deep enough to need 270 feet of head. Budget for a waterproof splice kit and a full wiring diagram from the manufacturer, not the box.
Where it falls short
Thirteen GPM is a modest flow rate, so this is not a whole-property or irrigation pump. And the two-piece assembly is a real barrier if you are not comfortable with splicing and threadlocker, which is often the moment a professional call makes sense.

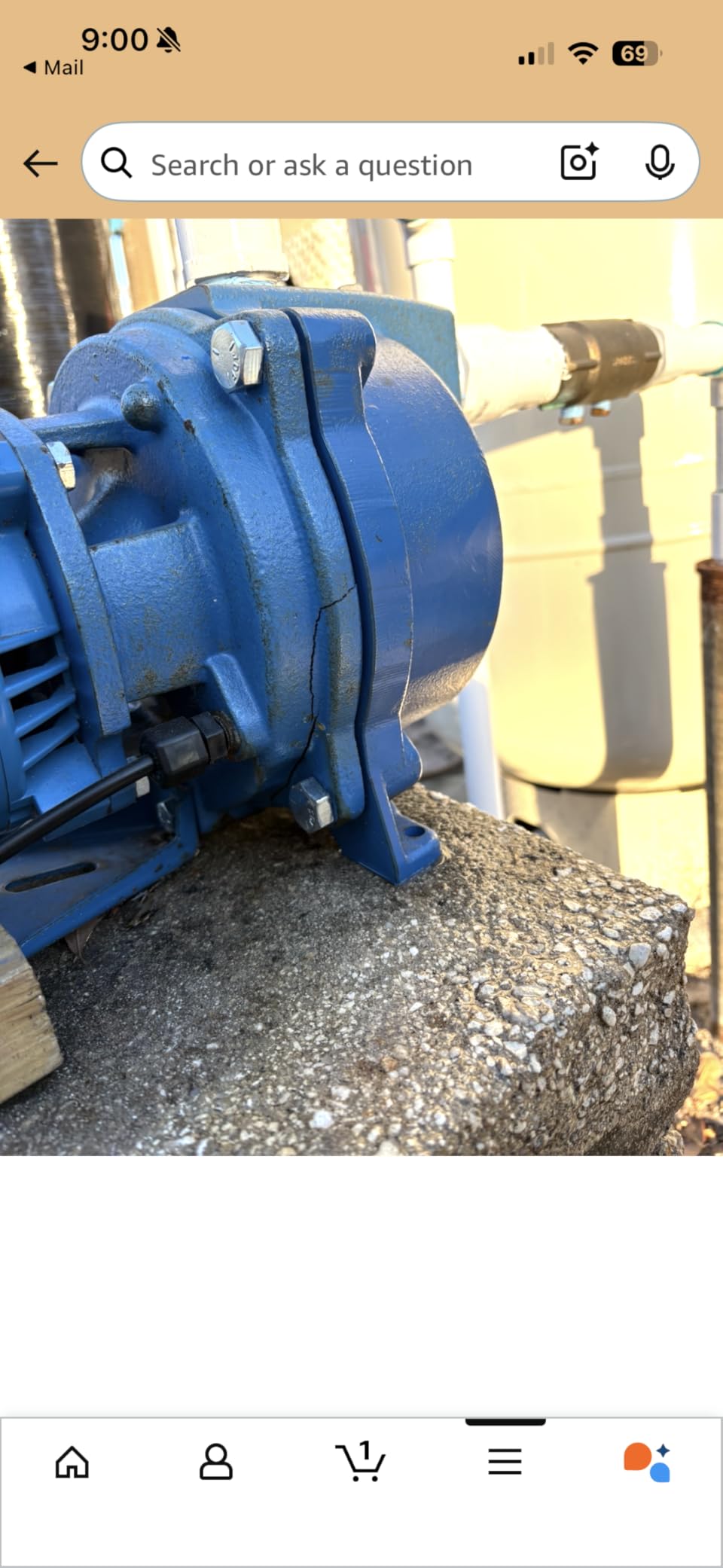

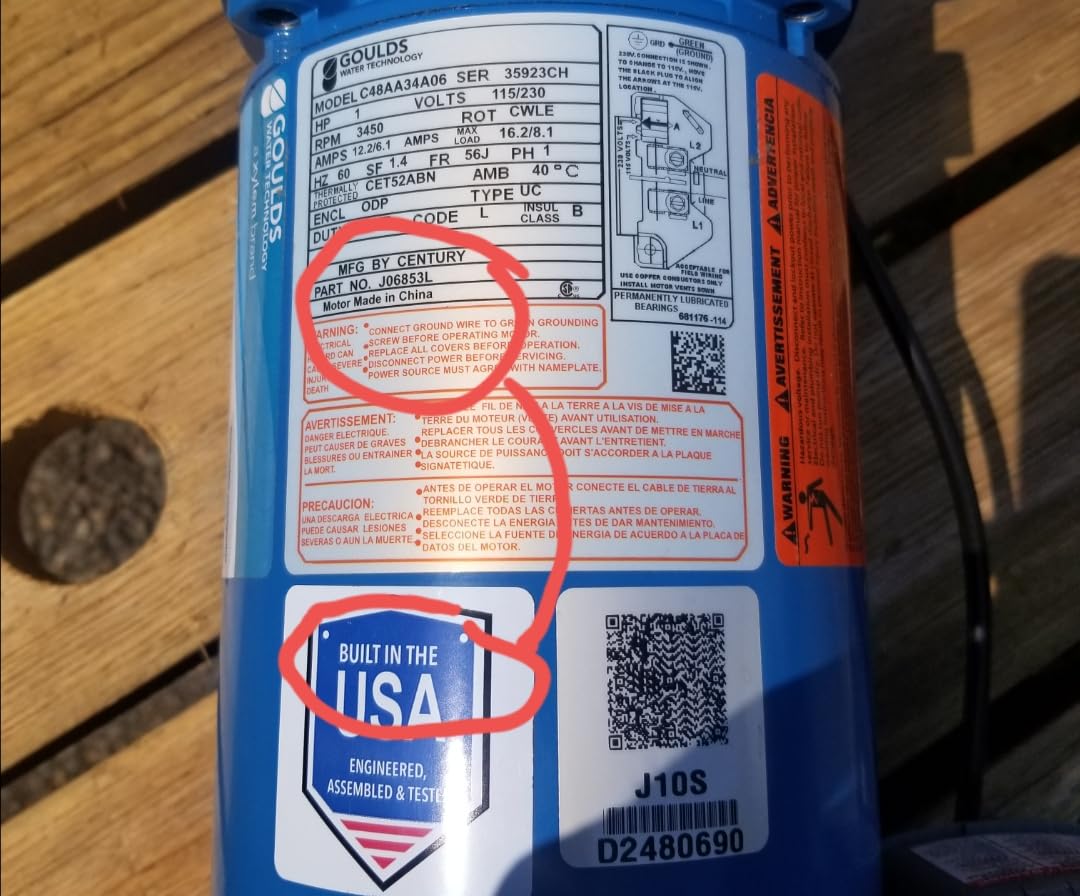

11. Goulds J10S 1 HP Jet Pump – Best for High Demand Homes
Goulds J10S Shallow Well Jet Pump
- 1 HP
- 115/230V capacitor start
- 25 GPM
- Stainless steel shaft
- UL778 listed
Pros
- Highest capacity in the group at 25 GPM
- Stainless steel shaft with built-in overload and automatic reset
- Primes easily even on a partly drained long suction line
- Very quiet
- one owner replaced an identical unit after 16 years
- Marked pressure jump when used as a booster
Cons
- Most expensive pump listed
- 50 pounds makes it a two-person job
- One owner had a unit burn out in two days
The J10S is the capacity leader in this roundup at 25 GPM, and it is built the same way the J5S is: NEMA standard, 60 Hz, 1 HP, 115/230V capacitor start, single phase, 3500 RPM, with a stainless steel shaft, a built-in overload with automatic reset, and an AS4 pressure switch preset at 30-50 PSI. It is UL778 listed with 1.25 inch NPT suction and 1 inch NPT discharge.
Priming behaviour is what owners notice most. Reports describe it priming easily even on a partly drained 200 foot suction line, which is exactly where small jet pumps fail. Used as a whole-house booster, it produced a marked jump in line pressure for the owner who installed it.
The repeat purchase is the strongest signal in the data here: one owner replaced an identical unit after sixteen years without hesitation. That is the argument for buying the most expensive pump in a list like this one.
It weighs 50 pounds, which makes it the heaviest unit in the roundup and a two-person job. It is also by far the most expensive option here, so a buyer on a replacement timeline rather than a service-life horizon is spending a lot for capacity they may not use. One owner had a unit burn out in two days, and one received a pressure control damaged in transit with no seller response, so factor handling risk into a part that has to be handled more than once.
Check these specs before you buy
Check that you actually need 25 GPM, because nothing in a typical household uses that much unless irrigation is on the same system. Plan the two-person lift. And if you are replacing a working pump, weigh whether a decade of service justifies the top-tier purchase.
Where it falls short
It is a shallow well pump, so suction lift must stay under 25 feet. And at 50 pounds with a premium purchase, it is an over-spec choice for a cottage, a guest house, or any property with modest demand.

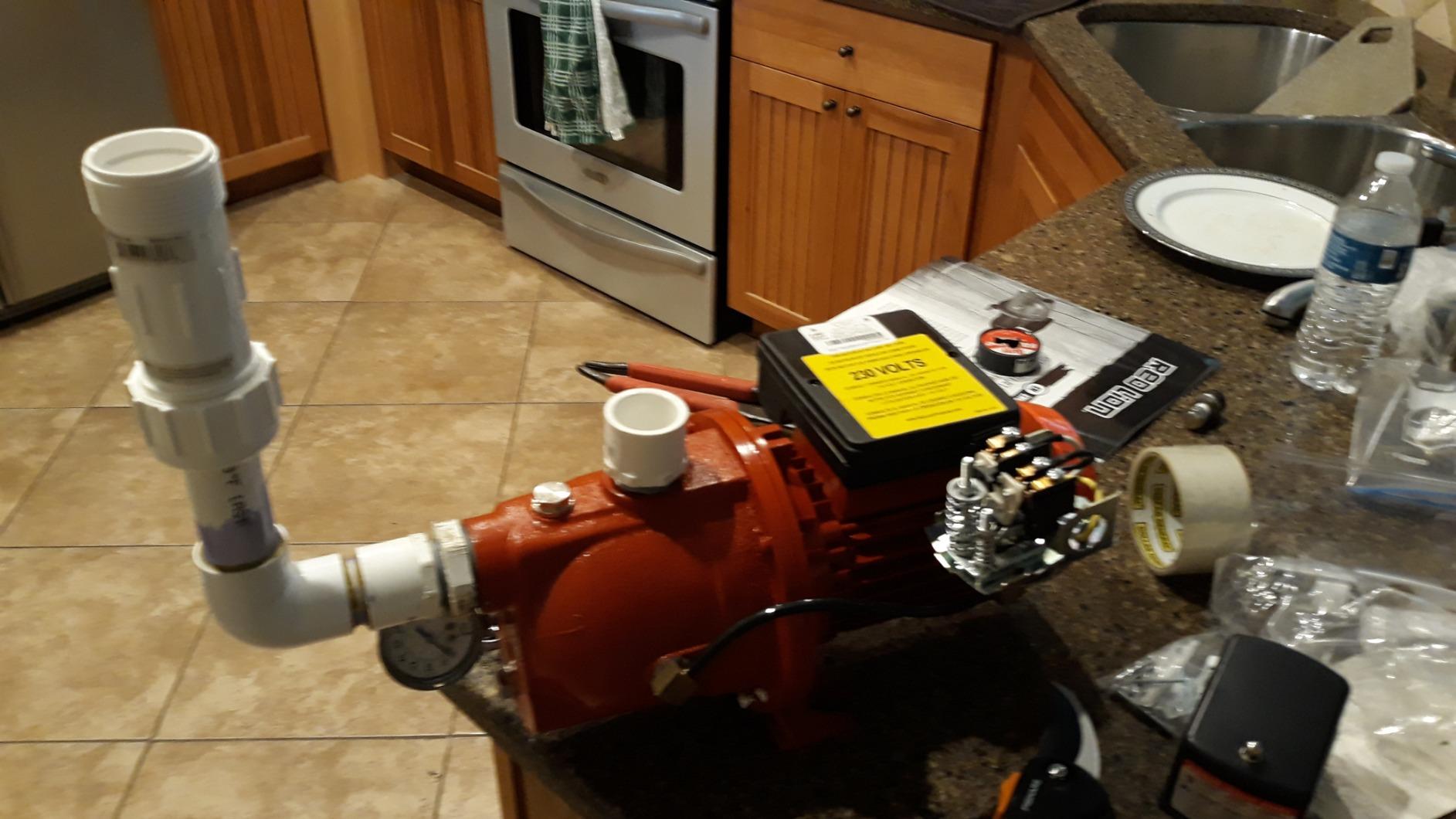

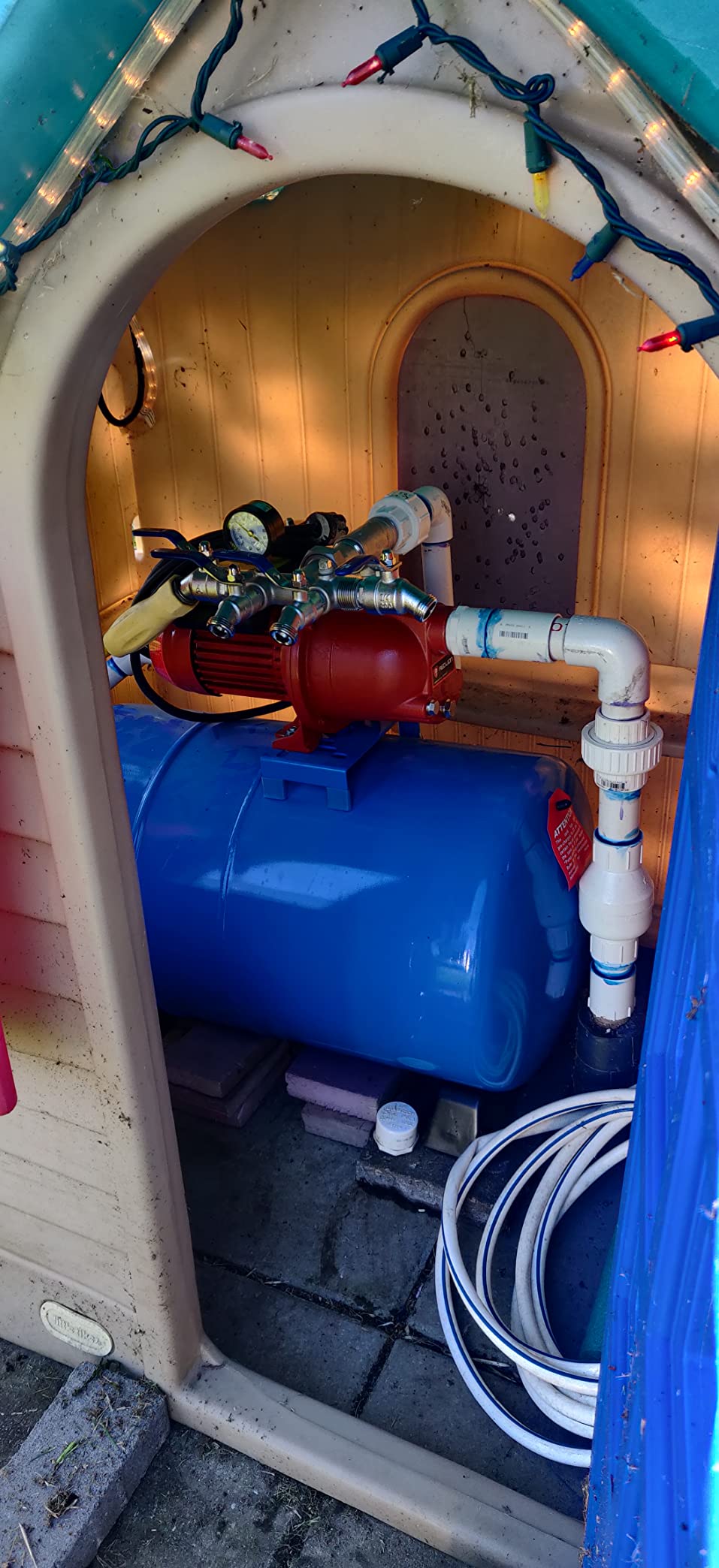

12. Red Lion RL-SWJ75 3/4 HP Jet Pump – Best for Farm and Irrigation
Red Lion RL-SWJ75, 115/230V, 3/4 HP, 13 GPM Shallow Well Jet Pump
- 3/4 HP
- 13 GPM at 30 PSI
- 70 PSI max pressure
- Dual voltage
- Cast iron
Pros
- Quiet
- fast-priming cast iron pump with steady pressure
- Dual voltage with an easily accessible terminal box
- Self-priming after the initial prime
- Two-year manufacturer warranty
- Farm owner reports roughly three years per unit
Cons
- Pressure gauge not included
- Some developed a leak between pump and motor after about a year
- Some pressure switches cycle at the 50 PSI cut-off
This is the pump for property where the water does more than fill taps. It is rated for wells under 25 feet, delivers 13 GPM at 30 PSI with a 70 PSI maximum pressure, draws 9 amps at 115V or 4.5 at 230V, and is factory set to 230V but switchable to 115V through an easily accessible terminal box. Heavy duty cast iron with a glass-filled polyester impeller and volute, 1-1/4 inch FNPT intake and 1 inch FNPT discharge.
It is self-priming after the initial prime, which is the feature that makes long irrigation runs practical. One owner running a farm with five horses reports roughly three years per unit and says it beat several other brands on the same duty, which is a useful real-world durability data point for livestock and field watering.
For irrigation and stock watering, the 30/50 pressure switch is the right operating band, and a 13 GPM flow rate covers troughs, a small yard, and garden sprinklers without cycling constantly.
Two recurring negatives are worth planning around. The pressure gauge is not included and has to be fitted in the housing port, and a few developed a leak between the pump and motor after about a year. A few pressure switches also cycle continuously at the 50 PSI cut-off, which points back to tank sizing rather than the pump itself, and some buyers needed two pumps before one worked.
Check these specs before you buy
Confirm your suction lift is under 25 feet and that 13 GPM covers troughs, sprinklers and household use together. Budget for a pressure gauge fitting. And if you are on livestock water, note the roughly three year replacement interval owners report, because that changes the cost math compared with a household duty.
Where it falls short
It will not serve a deep well at all, and it is not built for household peak demand alongside irrigation. If your property runs on a deep well, this is the wrong category of pump entirely.
Which Type of Well Pump Do You Need?
A shallow well jet pump is right for wells under 25 feet, a deep well submersible is right for everything deeper, and a convertible jet pump covers both on one unit. Almost every pump selection mistake comes from choosing a jet pump for a deep well, or a submersible for a well the water table cannot support. Here is how the four main types divide.
Shallow well jet pump
Sits beside the casing, self-priming, sucks from up to 25 feet. Best for high water table wells, pump houses, and irrigation duty. Cheaper to service because you do not have to pull it out of the ground, but it is loud and it needs a pad and a freeze-protected location.
Deep well submersible pump
Sits inside the casing below the water level and pushes water up. Best for anything past 25 feet, and the quietest option since nothing runs in the house. The trade is service: replacement means a rope, a wellhead, and often a second person.
Convertible jet pump
The same body works as a single-pipe shallow setup or a two-pipe deep setup with the ejector kit fitted. Best when the well depth is uncertain or a property may be developed further. It costs a little more in fittings and gives up some efficiency compared with a purpose-built pump.
Pump house centrifugal pump
A surface-mounted alternative to a submersible on very deep wells, running on 460V three phase. More serviceable and quieter to cool, but it ties the whole system to three phase power, which narrows your future control options. Most residential systems do not need this.
The 25 foot rule is the dividing line to remember. Under 25 feet of suction lift, a jet pump works and costs less to own. Over that, a submersible is the only sensible answer.
How to Size a Well Pump From Your Own Well Log
Total dynamic head, or TDH, is the single number that sizes a well pump, and it is arithmetic rather than guesswork. The formula is: static water level, plus about 33 feet of head for every PSI of pressure you want at the faucet, plus any elevation difference between the well and the house. Add 20 to 30 percent for margin, and check you have at least 15 to 20 feet of head above the pump’s shutoff pressure to avoid upthrust.
Step one: read the static water level
This is the depth to water when the pump is off, and it is on the well log or driller paperwork. It is not the well depth. A 540 foot well with a 175 foot static level has 365 feet of casing above water that does nothing for you.
Step two: find the sustained flow rate
Sustained GPM is the flow the well can deliver while the pump runs, measured after drawdown stabilises, usually by a two hour drawdown test. This is the number that matters more than the well log’s headline capacity. A well rated at 30 GPM that only sustains 12 is a 12 GPM well, and sizing a pump to 30 GPM guarantees short cycling and upthrust damage.
Step three: compute TDH and set the pump
Add static level to pressure head. For a 50 PSI system, pressure head is roughly 50 times 33, or 1650 feet. Add elevation gain if the house sits above the wellhead. That total is the head your pump must overcome, and you pick a pump rated above it with margin, then set the pump far enough below the water level that it never breaks suction.
Worked example from a real installation
A well owner on a well owner forum documented a 6 inch casing, 540 feet total depth, 175 foot static level, a pump set at 428 feet, and 23 GPM sustained over two hours. Add pressure head of 1650 feet for a 50 PSI system, plus the 175 foot static, and the system needs roughly 1825 feet of dynamic head at flow, which is why a 3 HP high-head submersible was specified. A forum expert on that thread recommended capping maximum frequency to reduce required head by about 19 percent and eliminate upthrust, and sizing a smaller future replacement rather than matching the original oversized pump.
That thread is worth reading in full if you are planning an install. It is also the clearest example on the internet of why pump sizing is a system decision: the right answer changes if you use a constant pressure control instead of a pressure switch, because a variable frequency drive can throttle the pump down and cut required head substantially.
Pressure Tank, Pressure Switch and Constant Pressure Control
The pump is only one part of the decision, and the control system is where most of the money and most of the frustration lives. A 30/50 pressure switch with a properly sized tank is the standard. A cycle stop valve adds constant pressure on a 30/50 system. A variable frequency drive gives smooth, constant pressure at every flow rate, at the highest cost and the most complexity.
Most pressure tanks hold far less water than their size suggests
An 80 gallon pressure tank holds roughly one quarter to one third of its volume in actual water, with air above it. That surprise comes up constantly on homeowner forums, and it is the single most common reason pumps short cycle. A tank that is 80 gallons nominal is not an 80 gallon buffer, and sizing it as though it is will cause cycling no matter which pump you buy.
How to pick between switch, cycle stop valve and VFD
A pressure switch is the simplest and cheapest, and it works fine when the tank is properly sized. A cycle stop valve holds a small column of water that buffers the switch and gives noticeably steadier pressure on a standard switch setup. A variable frequency drive adjusts pump speed to match demand continuously, which is the smoothest experience and the most expensive, and owners report replacing some drives two or three times in five to ten years. Weigh that failure history before you commit to one.
The pipe pressure warning nobody mentions
The pipe between your pitless adapter and your control device has to handle the backpressure the control device creates. A cycle stop valve in particular can push back harder than the pipe rating. Homeowners on well forums report that a 3 HP submersible can push roughly 230 PSI into that line, which is why the pipe in that run should be rated for 250 PSI. Using poly or PEX at a lower rating in that specific run is how lines fail.
Three phase ties you to a control approach
Well owners describe three phase installs as a tar baby, and the concern is legitimate. A three phase pump generally requires a drive for control, which narrows your future options, and if you ever want to swap in a different pump you are pushed toward a more expensive path. Most residential systems do not need three phase, and choosing single phase keeps the system flexible.
Cast Iron vs Stainless Steel vs Thermoplastic
Stainless steel resists corrosion and outlasts the alternatives in sand-free water. Cast iron is heavy, mechanically robust, and handles abrasive and iron or manganese bearing water better than thermoplastic. Thermoplastic is light, resists some corrosion, and is the most vulnerable of the three to sand abrasion. The material argument is really an argument about your water, not about quality.
Why cheap pumps fail first on sand and iron water
Sand and mineral particles act as abrasive on impellers and shafts, and thermoplastic impellers wear fastest under that load. A pump chosen for price on a sand-producing well will show reduced flow and head long before the motor fails, which reads as a bad well when it is actually a worn impeller. If your well produces sand, prioritise a cast iron or heavier stainless pump over a thermoplastic one regardless of price.
When stainless is the right call
Stainless is the right call for clean water, for long submersion, and for anyone planning to keep a pump for a decade. A stainless steel shaft matters in all of them, because a corroding shaft takes the bearings with it. Where water is aggressive, a stainless body paired with a cast iron or stainless impeller beats a stainless body with a thermoplastic impeller.
When cast iron still wins
Cast iron jet pumps remain the sensible choice for shallow well and irrigation duty, and they are the standard for abrasive water. They are heavier, which matters for install day, and they corrode eventually in a way stainless does not, but the mechanical mass handles shock and grit better. The premium cast iron pumps in this roundup, the Goulds and Red Lion models, are built this way on purpose.
Expected Lifespan, Maintenance and Warning Signs
A correctly sized stainless submersible pump on clean water commonly runs 10 to 20 years or more, and pumps on abrasive or iron-bearing water commonly last far less. Jet pumps on irrigation duty run near-continuously and can replace a model every few years, which one farm owner in this roundup described as roughly three years per unit. Warranty length is a rough proxy for expected service life, and the 3-year warranty on the Wayne pump in this list is a meaningful signal.
Five signs your well pump is failing
Watch for spiky or sputtering water, a pressure gauge that drops lower each month, a pump that runs continuously with no fixtures open, a pump that cycles far more often than it used to, and any noise that sounds like grinding rather than hum. Any of those mean stop using the pump as a diagnostic and check it.
A simple maintenance routine
Test the pressure tank’s air charge annually, check the pressure switch cut-in and cut-out, confirm the pump is not cycling rapidly after a faucet opens, and look for leaks at the pump housing. For a jet pump, confirm the priming routine still works and check the mounting bracket. For a submersible, confirm the splice is dry and the lead is not chafed.
When a professional call is the right move
Pulling a pump out of a deep casing, replacing the pitless adapter, and working on a three phase electrical supply are all jobs where a licensed well driller or pump professional should be involved. If you are unsure whether your replacement requires a permit or a licensed installer, check before you start rather than after. Most forum users report that the DIY pump swap they regret was one where the pitless adapter or casing seal was disturbed.
Frequently Asked Questions
What is the most reliable water pump brand?
For residential well pumps, the brands with the strongest long-service reputations are Goulds, Franklin Electric and its Red Lion line, and Grundfos. In this roundup the two Goulds jet pumps and the Red Lion cast iron models consistently report multi-year service, while the cheapest marketplace submersibles show the highest early-failure rates. Reliability tracks material, warranty length and build location more than star rating.
Which type of pump is best for well water?
A deep well submersible pump is best for any well deeper than 25 feet, and a self-priming jet pump is best for shallow wells with less than 25 feet of suction lift. A convertible jet pump covers both ranges on one unit if the well depth is uncertain. Most single-family homes on a 100 to 300 foot well are best served by a 3/4 HP to 1 HP stainless submersible rated for 150 to 270 feet of head.
How long does a submersible well pump last?
A correctly sized stainless steel submersible pump on clean water commonly runs 10 to 20 years or more. Pumps on sand, iron or manganese-bearing water wear out much sooner because the abrasive load damages impellers and shafts. Jet pumps on irrigation duty run near-continuously and can need replacing every few years, which is why a three-year warranty is a useful signal when comparing models.
What size pressure tank do I need for a submersible pump?
Size the tank to the pump’s cycling rate, and be aware that most pressure tanks hold only about one quarter to one third of their rated volume in actual water, with the rest as air. An undersized tank causes short cycling, and short cycling causes upthrust damage to the pump. Check the tank air charge annually, and keep a way to add or remove air, because that balance is what stops the rapid on-off cycling.
Do I need a licensed well driller to replace a well pump?
Swapping a submersible pump in a well you own is often doable yourself if you can safely lower and raise the pump and work with the drop pipe and splice. Replacing the pitless adapter, working on three phase power, or anything that disturbs the casing seal should go to a licensed well driller or pump professional. Check your local permit rules before starting, and do not disturb the pitless adapter seal yourself without knowing what you are doing.
How do I know what size well pump I need?
Read your static water level and sustained flow rate from the well log, then add about 33 feet of head for every PSI of pressure you want, plus any elevation difference between the well and the house. That total is your total dynamic head. Pick a pump rated comfortably above it, add 20 to 30 percent margin, and keep at least 15 to 20 feet of head above the shutoff pressure to avoid upthrust.
Conclusion
The best well pumps for home water systems are the ones matched to your well log, not the ones with the biggest number on the label. For most homes on a mid-depth drilled well, our editor’s choice, the Hallmark MA0414X-7A 1 HP 230V submersible, is the strongest all-round pick because it combines 33 GPM, 207 feet of head, a stainless body and a built-in capacitor start that removes the control box.
Shallow wells under 25 feet want a jet pump instead, and the Acquaer CJE100-1 covers both shallow and deep on one unit if you are not certain of the depth. Cabins and cottages with light demand can step down to the Wayne SWS50 for its three-year warranty or the Red Lion PWJET50 for potable certification. If you are planning on a decade of service rather than a quick replacement, the Goulds J5S and J10S are the ones owners come back to.
Before you buy anything, pull your static water level, sustained flow rate and pump setting depth, do the head math, and check your tank size. Get those three numbers right and the pump choice makes itself. Updated for 2026.
